auto inspection SMT machine SAKI 3DI AOI machine with inspection camera detect wrong in the pcb board

Products

LCD glass sucher/vacuum suction pen

SMT solder paste mixer/smd counter

SMT NSK LUBE grease/grease gun

SMT Splice tape/smt splice tools

auto inspection SMT machine SAKI 3DI AOI machine with inspection camera detect wrong in the pcb board

Price:	$1,500.00 - $15,000.00/pieces
Standard Packaging:	SAKI 3DI AOI machine packing with vacuum wooden case
Supply Capacity:	1000000 Piece/Pieces per Month SAKI 3DI AOI machine

Detail Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

SAKI 3DI AOI

Model Number

SAKI 3DI AOI machine

Condition:

Weight (KG):

Showroom Location:

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Warranty:

1 Year

Product Name:

SAKI 3DI AOI Machineine

Skype:

Sensenhenhao

Whatsapp/wechat:

+8613424013606

Board Size::

50*50 - 250*330mm

Board Warp::

+/-2mm, 79mils

Camera::

Line Color CCD Camera

Board Thickness::

0.6 - 2.5mm

Resolution::

Lighting::

LED Lighting System

Power Consumption::

400VA

Port:

Shenzhen

Product Description

auto inspection SMT machine SAKI 3D AOI machine with inspection camera detect wrong in the pcb board

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

auto inspection SMT machine SAKI 3DI AOI machine with inspection camera detect wrong in the pcb board 0

SAKI 3DI AOI machine Specification:

BF-3Di, the new 3D AOI made in SAKI, has played a protagonist role in Madrid, at the latest MATELEC exhibition.

auto inspection SMT machine SAKI 3DI AOI machine with inspection camera detect wrong in the pcb board 1

New positioning system:

New servo and dual-driven ball-screw and linear scale positioning system

The ball-screw and linear scale system is 50% faster, thereby resulting in a 20% reduction in cycle time, providing greater cycle time and efficiency

New machine configurations: BF-3Di-L1/Z1/D1:

BF-3Di-L1: The new L-sized machine, handling 510mm x 460mm (20 in. x 18 in.)

BF-3Di-Z1: The new XL-sized machine, previously unavailable in a 3D system, handling boards 686mm x 870mm (27 in. x 34 in.)

BF-3Di-D1: The new Dual-Lane machine, with independent operation

New optical head:

New optical head has optimized stripe pattern projectors, improving contrast, and stripe pattern for improved accuracy and image quality

New optical head is 30% lighter than optical head of previous BF-3Di system

New 4-stage seamless lighting ring for improved illumination and imaging

New side cameras:

New optional quad-directional side cameras offer improved inspection of J-leaded, QFN, and connector components

Provides accurate inspection of fillet geometry

Side camera FOV width matches main camera FOV

Side camera resolution is the 18µm, same as the main camera resolution

New Auto Programming:

New auto programming software offer improved programming time

Inspection libraries are automatically applied based on component information, such as name, shape, and gerber data

Reduces library creation time by over 50% compared to conventional AOI

New Extra Component Detection (ECD) for 3D

Detects foreign materials , such as dropped components on the board surface

Improves inspection quality for the entire board area

New 3D alghoritm for THD componentes:SAKI developed dedicated 3D algorithms and features for THT area, which can be used to makeTHT inspection simple and effective

Inspection category: No solder, Less solder, Cold solder, Pin bent under PCB, Hole in solder, Bridge on PCB, Bridge above the PCB, Solder calls

New Warpage Compensation calculation:Provides accurate measurement and compensation across the entire board, including flexible circuits and Package-on-package devices

Successful Experience:

Meraif's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

5. We Can Solve Any Question About SMT

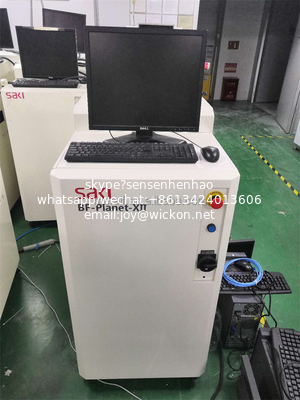

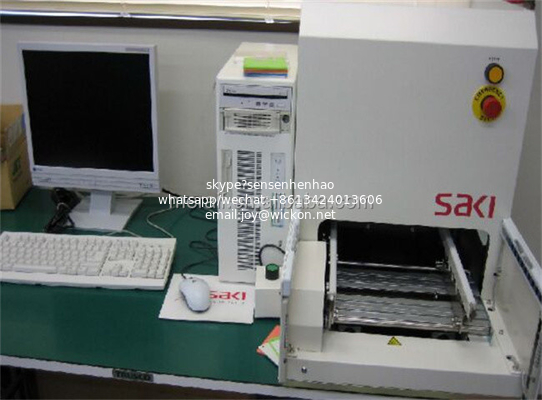

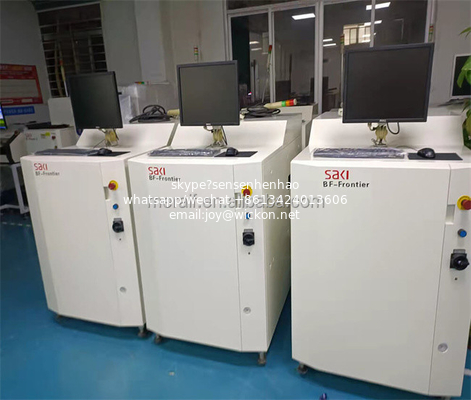

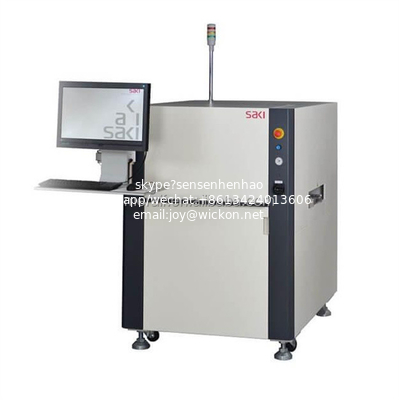

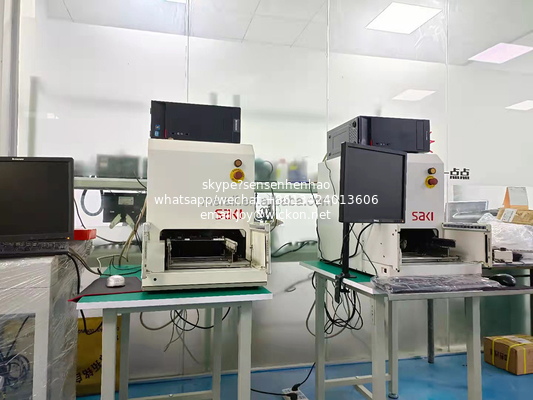

SAKI 3DI AOI machine picture show
