Automated Optical Inspection Koh Young online 3D AOI
  • name
  • name
  • name
  • name
  • name
  • name

Automated Optical Inspection Koh Young online 3D AOI

Price: $58,000.00 - $99,999.00/pieces
Standard Packaging: Automated Optical Inspection packing with vacuum wooden case
Supply Capacity: 1000000 Piece/Pieces per Month Automated Optical Inspection
Detail Information
Product Description
Detail Information
Place of Origin
Japan
Brand Name
Koh Young Zenith
Model Number
Koh Young Zenith AOI
Condition:
Used
Weight (KG):
100
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC
Warranty:
1 Year
Product Name:
Automated Optical Inspection
Skype:
Sensenhenhao
Whatsapp/wechat:
+8613424013606
Board Size::
50*50 - 250*330mm
Board Warp::
+/-2mm, 79mils
Camera::
Line Color CCD Camera
Board Thickness::
0.6 - 2.5mm
Resolution::
18μm
Lighting::
LED Lighting System
Power Consumption::
400VA
Port:
Shenzhen
Product Description

Automated Optical Inspection Koh Young Zenith online 3D AOI

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .



 Automated Optical Inspection Koh Young online 3D AOI 0

Automated Optical Inspection Specification:

Koh Young Zenith AOI
Optimized specification model for various production environments
Fully automatic AOI with Koh Young’s patented 3D inspection technology
Removes shadow problems with 8 way projection – even in the Z axis
Real time PCB warp compensation
Reveals a wide range of defects such as scewed or tombstoned components
Enables Industry 4.0 with the Smart Factory
Watch the video to see how the Koh Young inspection concept can help you optimize your electronic production.

The World's Best-selling & First Full 3D Automated Optical Inspection Eliminates all the sources of defects using full 3D measuring inspection equipment skills- Removes shadow problems utilizing 8-way projection- Realizes perfect 3D solder joint inspection- Provides accurate inspection data with real-time PCB warp compensation· Full 3D data-based process optimization solution: Realization of industry 4.0 smart factory- Process information DB and real-time remote monitoring- Inspection program management automation & efficiency· Optimized specification model for a variety of production environment
High-precision weld seam measurement algorithm provided by KOH YOUNG technology for artificial intelligence
8 MPixel camera / 15μm resolution
Z resolution: 1μm
The smallest component size: 300μm (0402)
4 projectors with the same capacity as 8 projectors
PCB size: 490 x 510 mm
PCB weight: 4kg
3D inspection speed: 27.14cm²/sec
Camera reads 1D and 2D barcodes
Offline programming station
Defect inspection station
service station
KSMART server solution with software suite
Integrated calibration check wedge
Check for foreign objects on the PCB

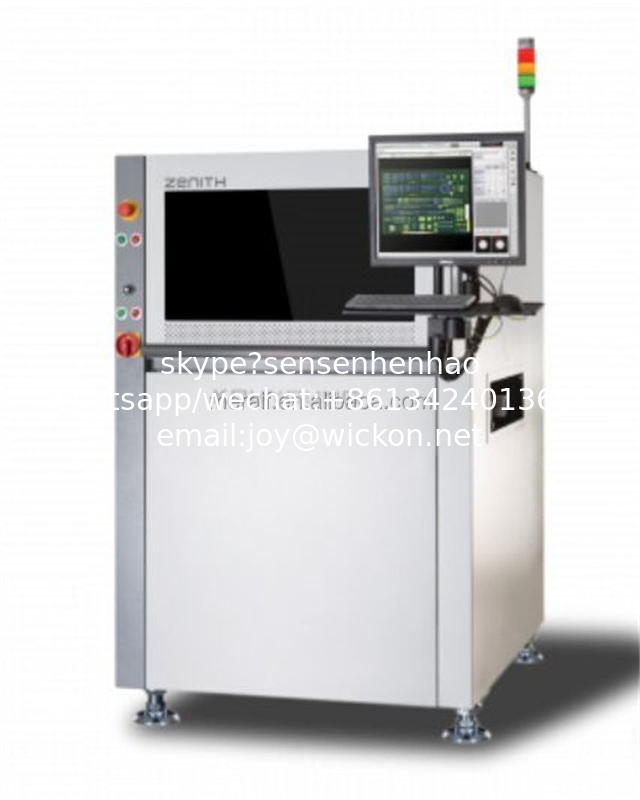

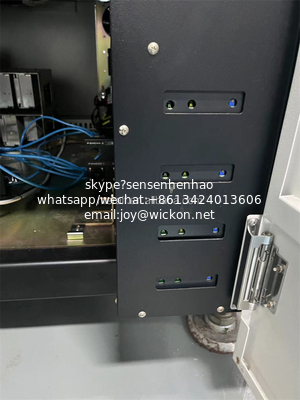

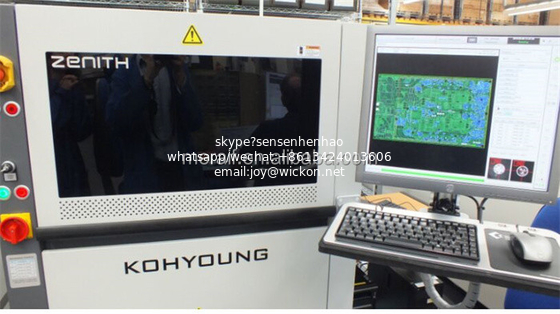

Automated Optical Inspection picture show

Automated Optical Inspection Koh Young online 3D AOI 1Automated Optical Inspection Koh Young online 3D AOI 2Automated Optical Inspection Koh Young online 3D AOI 3Automated Optical Inspection Koh Young online 3D AOI 4Automated Optical Inspection Koh Young online 3D AOI 5Automated Optical Inspection Koh Young online 3D AOI 6Automated Optical Inspection Koh Young online 3D AOI 7

Automated Optical Inspection Koh Young online 3D AOI 8

Automated Optical Inspection Koh Young online 3D AOI 9Automated Optical Inspection Koh Young online 3D AOI 10Automated Optical Inspection Koh Young online 3D AOI 11

Automated Optical Inspection Koh Young online 3D AOI 12

Automated Optical Inspection Koh Young online 3D AOI 13Automated Optical Inspection Koh Young online 3D AOI 14
