Product Details:
Payment & Shipping Terms:
|
| Condition: | Used | Weight (KG): | 100 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | SAKI BF-10D AOI |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Board Size:: | 50*50 - 250*330mm | Board Warp:: | +/-2mm, 79mils |
| Camera:: | Line Color CCD Camera | Board Thickness:: | 0.6 - 2.5mm |
| Resolution:: | 18μm | Lighting:: | LED Lighting System |
| Power Consumption:: | 400VA | Port: | Shenzhen |
used SMT SAKI AOI machine smt SAKI BF-10D AOI
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
SAKI BF-10D AOI Specification:
SAKI AOI BF-10D
The SAKI AOI BF-10D, M-size system was developed especially for high speed, inline, dual-lane production, employing Saki's new high-speed color camera and a new gantry frame designed for high speed motion of the camera. New image processing tools take advantage of multi-core CPU processing. The BF-10D can easily keep up with production takt times as short as 8 seconds. Saki's BF-10D handles dual-lane high speed production lines using only one head. Whether the two lanes have the same or different board configurations, they can be inspected simultaneously in one pass, making inspection very fast. When the same items are run in both lanes, the inspection programming data can be shared.
BF 10D Dual Liane In-line High Resolution and High Speed AOI In-line 2D AOI
Scanning time for M size (330x250mm) PCB is only 4 seconds, equivalent to single lane
Enable to inspect different items in the respective lane
BF-10D can deal with dual-lane high speed production lines only with one head. BF-10D can inspect different items by the front lane and the back lane respectively or same items in the both lanes. When same items are run at both lanes, same inspection programming data can be shared. BF-10D also provide 10um high resolution inspection with telecentric lens optical system by combining various algorithms and lighting types in simple construction with one axis operation, multiple data handling capability such as programming data change by barcode reading and data output to customers’ data servers
In-line Dual Lane High Resolution and High Speed AOI
Scanning time for M size (330x250mm) PCB is only 4 seconds, equivalent to single lane
Enable to inspect different items in the respective lane
SAKI BF-10D AOI details:
| Model | SAKI 2D AOI BF-10D |
| Resolution | 10μm |
| Board Size | Single Lane 50×60 - 460×330mm, 2×2.4 - 18×13in. Dual Lane 50×60 - 250×330mm, 2×2.4 - 10×13in. |
| Board Thickness | 0.6 - 3.2mm, 24 - 126mils |
| Board Warp | +/-2mm, 80mils |
| PCB Clearance | Top: 40mm, 1.57in. Bottom: 40mm, 1.57in |
| Rotated Component Support | Available for 0 - 359°rotation (unit of 1°) |
| Inspection Categories | Presence/Absence, Misalignment, Tombstone, Reverse, Polarity, Bridge, Foreign material, Absence of solder, Insufficient solder, Lifted lead, Lifted Chip, and Fillet defect. Each defect name can be changed freely by system function. |
| Tact Time*1 *2 | Single Lane Approx. 10sec (250x330mm 1 PCB) Dual Lane Approx. 16sec (250x330mm 2 PCB) |
| Image Scanning Time*1 | Approx. 5.5sec. (250x330mm) |
| Camera (Image Processing) | Line color CCD camera |
| Lighting | LED lighting system |
| Transfer Conveyor Method | Flat belt transfer |
| Transfer Conveyor Height | 900+/-20mm, 36+/-0.8in |
| Transfer Conveyor Width Adjustment | Manual |
| Operating System | Windows XP English Version |
| Optional System | BF-Editor / BF-RP1 / BF-Monitor / BF-View |
| Optional | 2D Barcode Recognition, Journal Printer, Automatic Transfer Conveyor Width Adjustment |
| Electric Power Requirement | Single Phase ~100 - 120V / 200 - 240V +/-10%, 50/60Hz, 800VA |
| Air Requirement | 0.5MPa, 5L/min (ANR), 73PSI, 0.18CFM |
| Usage Environment | 15°C(59F) - 30°C(86F) / 15 - 80% RH (Non-condensing) |
| Noise Level | 58.3dB |
| Dimensions*3 W x D x H | 850 × 1360 × 1380mm, 33.5 × 53.5 × 54.3in |
| Weight | Approx. 450kg, 992lbs |
| *1 If PCB size is smaller than 250x330mm, Image scannig time will be shorter than this values. *2 Including Image Scanning Time. *3 Monitor and keyboard arm is not included. | |

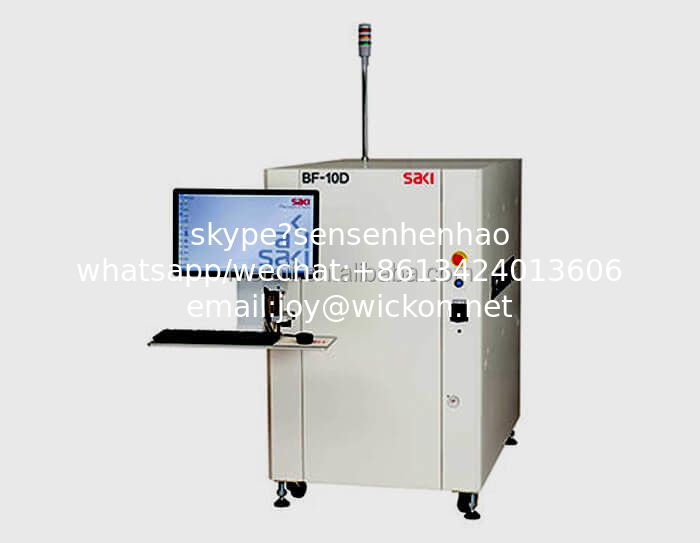

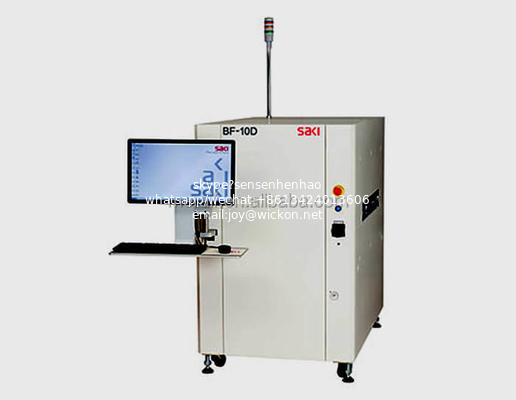

SAKI BF-10D AOI picture show
