Product Details:
Payment & Shipping Terms:
|
| Condition: | Used | Weight (KG): | 100 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | SAKI BF-10Z AOI Machine |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Board Size:: | 50*50 - 250*330mm | Board Warp:: | +/-2mm, 79mils |
| Camera:: | Line Color CCD Camera | Board Thickness:: | 0.6 - 2.5mm |
| Resolution:: | 18μm | Lighting:: | LED Lighting System |
| Power Consumption:: | 400VA | Port: | Shenzhen |
SAKI BF-10Z AOI machine 2D SAKI AOI machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
SAKI BF-10Z AOI machine Specification:
The SAKI AOI BF-10Z was developed especially for manufacturers building XL size panels, up to 686 x 870 mm (27.01 x 34.25 in.), for products such as communication base stations, server and storage assemblies, and LED back panels. The BF-10Z employs Saki's "Selective Resolution System," which enables users to operate in 10µm or 20µm resolution scanning modes. Users can select either mode, choosing the one that best matches accuracy and throughput needs. The BF-10Z's takt time is 48 seconds in 10μm mode, and 31.5 seconds in 20µm mode.
SAKI AOI BF-10Z In-line High Resolution and High Speed AOI In-line 2D AOI
Max PCB size is 330x250mm for BF-Planet-XII, 500x460mm for BF-FrontierII, 870x686mm for BF-10Z
Scanning time is only 4 seconds(BF-Planet-XII)
Compact body of only 60cm width (BF-Planet-XII)
In-line High Resolution and High Speed AOI
In-line 2D AOI
Max PCB size is 330x250mm for BF-Planet-XII,
500x460mm for BF-FrontierII, 870x686mm for BF-10Z
Scanning time is only 4 seconds(BF-Planet-XII)
Compact body of only 60cm width (BF-Planet-XII)
Line Scan Technology AOI for XXL-size PCBs
The new BF-10Z Automated Optical Inspection System employs Saki’s unique Line Scan Technology for inspecting PCB panels up to 686 x 870 mm (27.01 in. x 34.25 in.) - a 40% increase in scanning area over Saki’s previous XXL model. The BF-10Z is ideal for manufacturers building oversized products like communication base stations, server & storage assemblies and LED back panels.
| Model | SAKI 2D AOI BF-10Z |
| Resolution | 10μm, 20μm (Selective Resolution System) |
| Board Size | 50 W x 60 L - 686 W x 870 L mm (1.97 W x 2.36 L - 27 W x 34.25 L in.)
|
| Board Thickness | 0.6 - 5.0 mm (0.02 - 0.196 in.) |
| Board Warp | 2 mm (0.078 in.) or less |
| PCB Clearance | Top: 40mm, 1.57in. Bottom: 40mm, 1.57in |
| Rotated Component Support | Available for 0 - 359°rotation (unit of 1°) |
| Inspection Categories | Presence/Absence, Misalignment, Tombstone, Reverse, Polarity, Bridge, Foreign material, Absence of solder, Insufficient solder, Lifted lead, Lifted Chip, and Fillet defect. Each defect name can be changed freely by system function. |
| Tact Time*1 *2 | 10μm : Approx. 63 sec. 20μm : Approx. 39 sec |
| Image Scanning Time*1 | 10μm : Approx. 15 sec. x 3 20μm : Approx. 8 sec. x 3 |
| Camera (Image Processing) | Line color CCD camera |
| Lighting | LED lighting system |
| Transfer Conveyor Method | Flat belt transfer |
| Transfer Conveyor Height | 880 - 920 mm (34.65 - 36.22 in.) |
| Transfer Conveyor Width Adjustment | Manual |
| Operating System | Windows XP English Version |
| Optional System | BF-Editor / BF-RP1 / BF-Monitor / BF-View |
| Optional | 2D Barcode Recognition, Journal Printer, Automatic Transfer Conveyor Width Adjustment |
| Electric Power Requirement | Single phase ~100-120V/200V-240V+/-10%, 50/60Hz, 800VA |
| Air Requirement | 0.5MPa, 5L/min (ANR), 73PSI, 0.18CFM |
| Usage Environment | 15°C(59F) - 30°C(86F) / 15 - 80% RH (Non-condensing) |
| Noise Level | 58.3dB |
| Dimensions W x D x H | 1500 W x 1360 D x 1380 H mm (59.06 W x 53.54 D x 54.33 H in.) |
| Weight | Approx. 530 Kg (1168 lbs) |
| (*1) If a PCB size is smaller than 686 W x 870 L mm (27 W x 34.25 L in.), Image scanning time will be shorter than these values. Shading process is performed when a PCB is loaded to the machine. | |

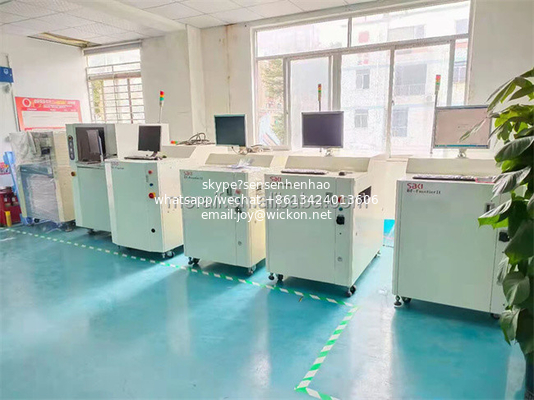

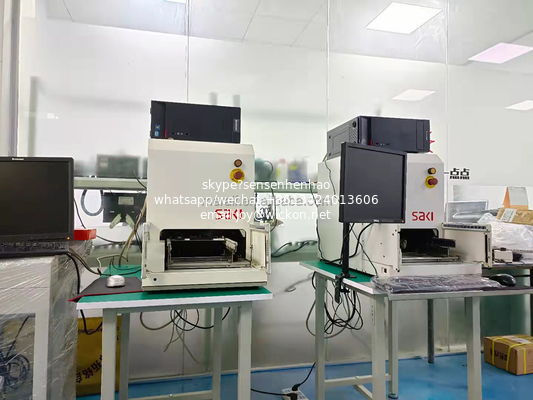

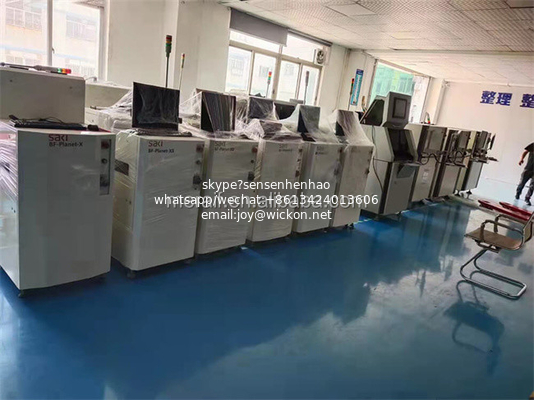

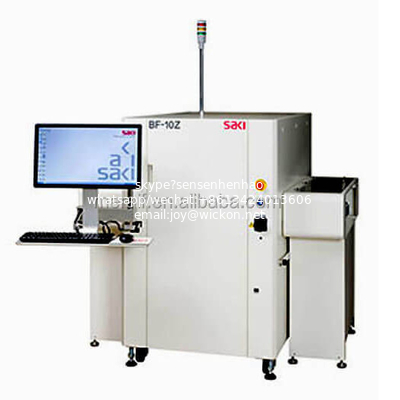

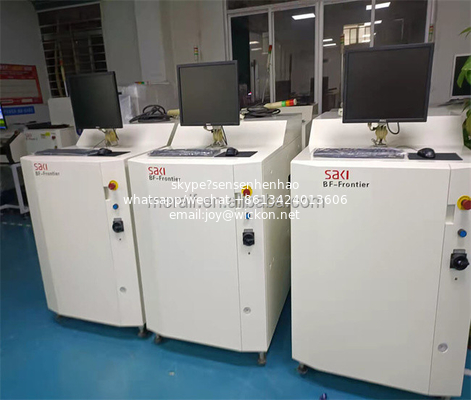

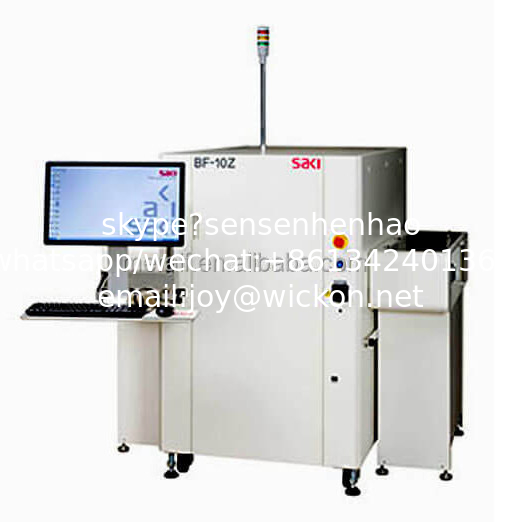

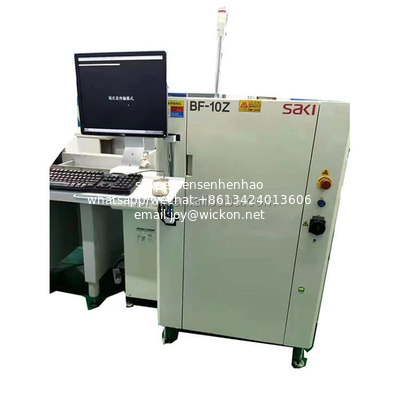

SAKI BF-10Z AOI machine picture show
