Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Weight (KG): | 140 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Item: | Automatic PCB Unloader |
| Whatsapp: | +8613424013606 | Skype: | Sensenhenao |
| Frame Time:: | About 6 Seconds | Air Pressure And Flow:: | 4~6bar, ≤10L/min |
| Transmission Height:: | 920±20mm | Circuit Board Thickness:: | ≥0.4mm |
| Step Selection:: | 1-4 (10mm Step) | Frame Size:: | 355x320x563 |
| PCB Allowable Size:: | (50~50) X (350x250) | Port: | Shenzhen |
SMT Automatic PCB Unloader SMT LED production line PCB unloader machine
Whatspp:+8613424013606,skype:sensenhenhao
Automatic PCB Unloader details
| model:MFU-250 Automatic PCB Unloader |
| Machine size:1700x780x1200 |
| Control module: Siemens PLC industrial control |
| Frame time: about 6 seconds |
| Tank replacement time: about 20 seconds |
| Power and load: 220v/0.3kw |
| Air pressure and flow: 4~6bar, ≤10L/min |
| Transmission height: 920±20mm |
| Transmission direction: left to right or right to left |
| Circuit board thickness: ≥0.4mm |
| Step selection: 1-4 (10mm step) |
| Sensor brand: Omron |
| Stepper and transport motors: Taiwan CUHK |
| Frame size: 355x320x563 |
| Fault detection: I/O signal detection |
| Equipment weight: 160kg |
| PCB allowable size: (50~50) x (350x250) |

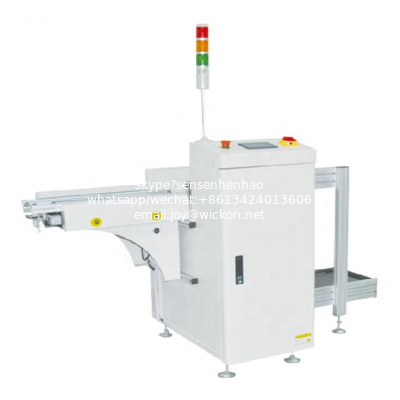

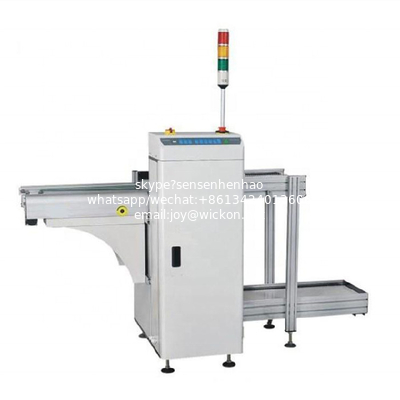

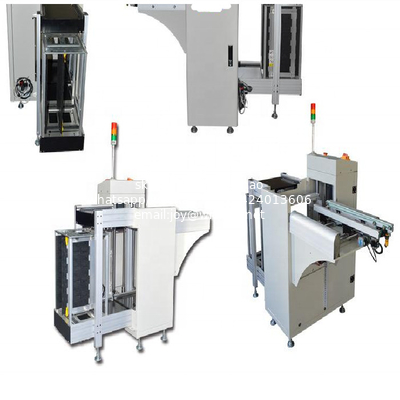

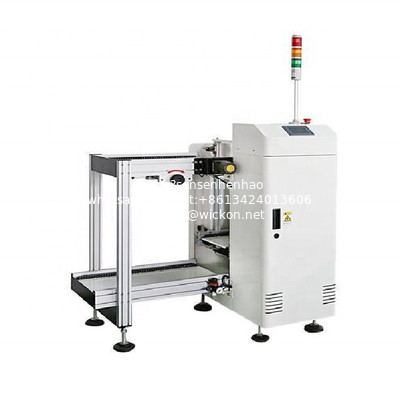

Automatic PCB Unloader picture show
picture show:
