Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Weight (KG): | 140 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Item: | PCB Buffer Stocker |
| Whatsapp: | +8613424013606 | Skype: | Sensenhenao |
| Frame Time:: | About 6 Seconds | Air Pressure And Flow:: | 4~6bar, ≤10L/min |
| Transmission Height:: | 920±20mm | Circuit Board Thickness:: | ≥0.4mm |
| Step Selection:: | 1-4 (10mm Step) | Frame Size:: | 355x320x563 |
| PCB Allowable Size:: | (50~50) X (350x250) | Port: | Shenzhen |
SMT NG/OK PCB Unloader PCB Buffer Stocker Machine for smt machine line
Whatspp:+8613424013606,skype:sensenhenhao
PCB Buffer Stocker details
1.Outer structure: sheet metal structure and aluminum profile into the frame, surface spray treatment, the color is corrugated white.
2. Microcomputer Panasonic PLC control system, stable and reliable.
3.The touch screen display operation has automatic fault diagnosis function, and the man-machine dialogue is convenient.
4. Multiple sound and light and alarm function in the touch screen.
5. The rack lifting step can be set according to the thickness of the PCB.
6. With automatic counting function, it is convenient for production statistics.
7.User-friendly design ensures that PCB boards are not broken and improve output capacity
8.The lower connection PCB board adopts the motor to send the board to the material frame.
9.Stepper motor push plate, the force can be adjusted, the speed can be set on the touch screen
10.Push plate device uses two head limit to protect PCB board
11. The OK board is loaded into the front frame, and the NG board is transferred into the fabric frame.
12.Double line number distinguishes NG\OK

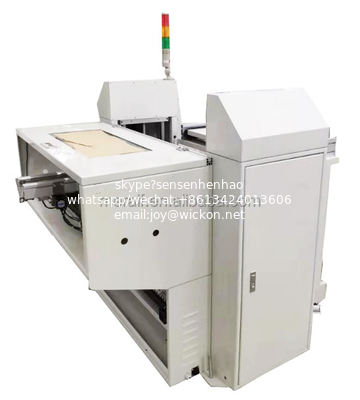

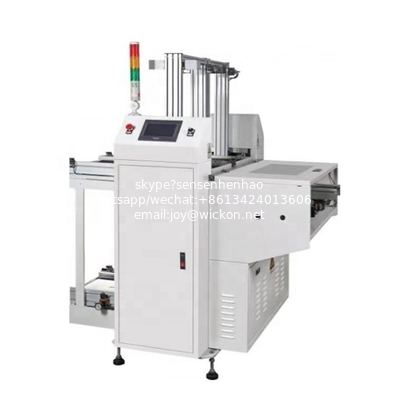

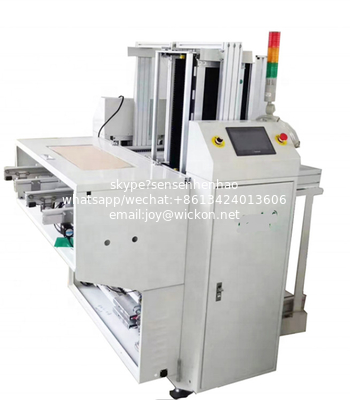

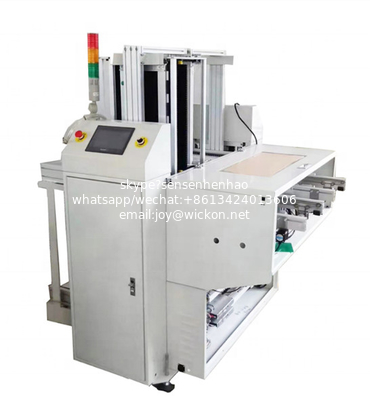

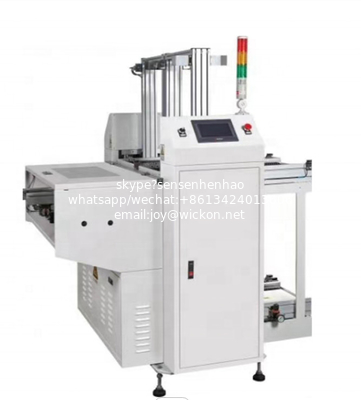

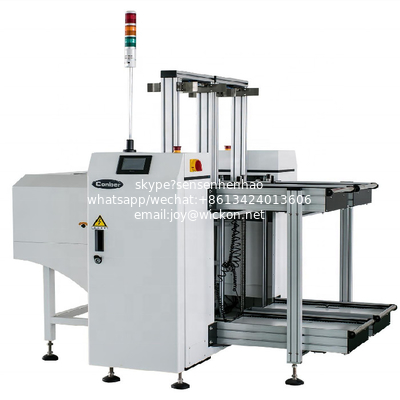

PCB Buffer Stocker picture show
picture show:
