Factory price Stable Performance Smt Manufacturing Line Smd Mounting Machine pick and place machine line
  • name
  • name
  • name
  • name
  • name
  • name

Factory price Stable Performance Smt Manufacturing Line Smd Mounting Machine pick and place machine line

Price: $1.00 - $2.00/pieces
Standard Packaging: pick and place machine packing with vacuum wooden carton
Supply Capacity: 1000000 Piece/Pieces per Month pick and place machine
Detail Information
Product Description
Detail Information
Place of Origin
Japan
Brand Name
Pick and Place Machine
Model Number
MF- 10 CHIP MOUNTER
Condition:
New
Weight (KG):
1000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC
Warranty:
1 Year
Product Name:
Pick And Place Machine Line
Skype:
Sensenhenhao
Whatsapp/wechat:
+8613424013606
Model Number::
MF-10
Applicable Components::
Nts: 0402~5050
Usage::
SMD LED SMT
Application::
SMT Assembly Production Line
Film Materials::
Privacy Material
Power Supply::
AC220V 50Hz / AC110V
Lead Time:
7-30days
Port:
Shenzhen
Product Description

Factory price Stable Performance Smt Manufacturing Line Smd Mounting Machine pick and place machine line



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



pick and place machine line Specifications:

Model 20
Placement Speed 52000CPH
Placement Accuracy ±0.05mm
Machine Size(L×W×H) 1790×1370×1500mm
Machine Weight 1500kg
Dimension of PCB 60×65~400×350mm
The thickness of PCB 0.5-4mm
Feeder lanes 48
Mounting Head Number 20
The Range of Components 0402(electric feeder)~20×20mm IC(SOT,SOP,QFP ect)
Position Way Image recognition+Algorithm Compensation
Picking Way Picking at the same time
Electronic Parameter Simple -Phase 220V AC 50HZ3.5KVA
Air Source Requirement Dry air 0.45Mpa~0.6Mpa 200L/min

pick and place machine line  Functions:

1.Two heads stick parts and two transmission system in turn incessantly to make the efficiency is higher.

2.Optical image recognition, adjusting the components on the flying process, identifying the mark Automatically; patent- Mathematical operation model, accurate posting.

3.Digital test pressure, automatically process and alarm when it didn't pick the components successfully

4.Three-sector on transmission system, reduce the time for delivering the boards

5.Fitted with 48 feeder lanes

6.All of the motors are Japanese Brand, the spindle is Panasonic A5 servo motor

7.Fixed cameras use high-pixel and high-definition industrial cameras which imported from Germany.

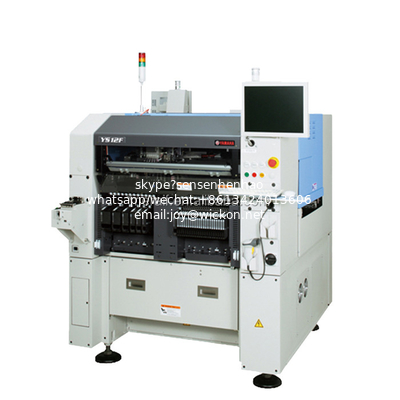

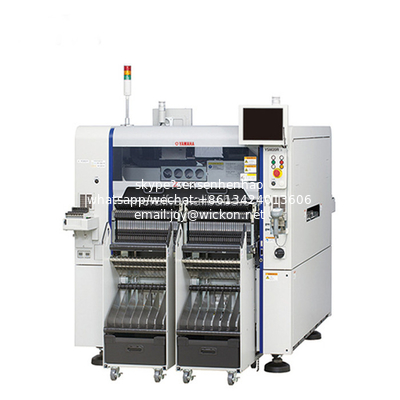

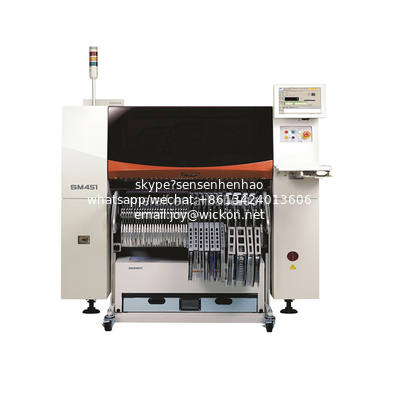

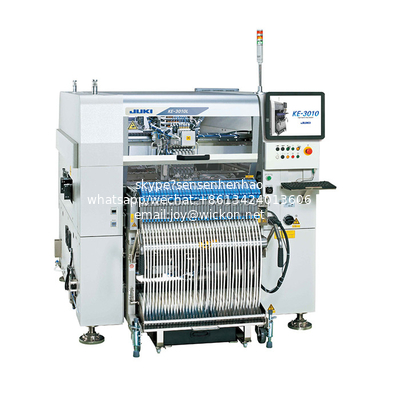

pick and place machine line picture show:

Factory price Stable Performance Smt Manufacturing Line Smd Mounting Machine pick and place machine line 0Factory price Stable Performance Smt Manufacturing Line Smd Mounting Machine pick and place machine line 1Factory price Stable Performance Smt Manufacturing Line Smd Mounting Machine pick and place machine line 2Factory price Stable Performance Smt Manufacturing Line Smd Mounting Machine pick and place machine line 3Factory price Stable Performance Smt Manufacturing Line Smd Mounting Machine pick and place machine line 4Factory price Stable Performance Smt Manufacturing Line Smd Mounting Machine pick and place machine line 5
