Panasonic chip mounter machine CM602-L pick and place machine for smt production line

Panasonic chip mounter machine CM602-L pick and place machine for smt production line

Price: $60,000.00 - $1,100,000.00/pieces
Standard Packaging: chip mounter machine CM602-L
Supply Capacity: 1000000 Piece/Pieces per Month chip mounter machine CM602-L
Detail Information
Place of Origin
Japan
Brand Name
Multi-Functional chip mounter
Model Number
chip mounter machine CM602-L
Condition:
New
Weight (KG):
1000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty Of Core Components:
1 Year
Core Components:
PLC
Warranty:
1 Year
Product Name:
Chip Mounter Machine CM602-L
Skype:
Sensenhenhao
Whatsapp/wechat:
+8613424013606
Model Number::
YSM20 SMDCHIPMOUNTER
Applicable Components::
Nts: 0402~5050
Usage::
SMD LED SMT
Application::
SMT Assembly Production Line
Film Materials::
Privacy Material
Power Supply::
AC220V 50Hz / AC110V
Lead Time:
7-30days
Port:
Shenzhen
Product Description

Panasonic chip mounter machine CM602-L pick and place machine for smt production line

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



Specification of chip mounter machine CM602-L

Model ID

CM602-L

PCB dimensions (mm)

L 50 x W 50 to L 510 x W 460

High-speed head

12 nozzles

Max.speed

100 000 cph (0.036 s/chip)

Placement accuracy

±40 µm/chip (Cpk1)

Component dimensions (mm)

(01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm

High-flexibility head

LS 8 nozzles

Max.speed

75 000 cph (0.048 s/chip)

Placement accuracy

±40 µm/chip, ±35 µm/QFP 24 mm,
±50 µm/QFP <24 mm (Cpk1)

Component dimensions (mm)

(01005”) 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8
When the generalized Ver.5 is optionally selected (01005”)0402 chip *5 to L 100 mm × W 50 mm × T 15 mm *6

Multi-functional head

3 nozzles

Max.speed

20 000 cph (0.18 s/QFP)

Placement accuracy

±35 µm/QFP (Cpk1)

PCB exchange time

0.9 s (Board length:up to 240 mm Under optimum conditions)

Electric source

3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA

Pneumatic source *1

0.49 MPa, 170 L /min(A.N.R.)

Dimensions (mm)

W 2 350 x D 2 290 *2 x H 1 430 *3

Mass *4

3 400 kg

Successful Experience:

Meraif's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

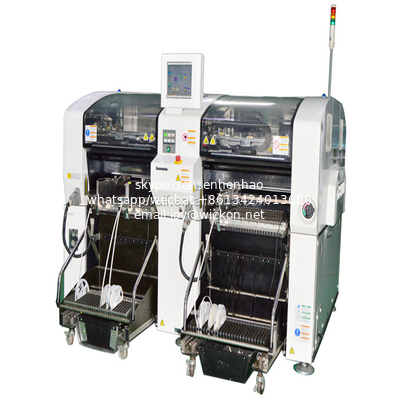

chip mounter machine CM602-L  picture show

Panasonic chip mounter machine CM602-L pick and place machine for smt production line 0Panasonic chip mounter machine CM602-L pick and place machine for smt production line 1Panasonic chip mounter machine CM602-L pick and place machine for smt production line 2Panasonic chip mounter machine CM602-L pick and place machine for smt production line 3Panasonic chip mounter machine CM602-L pick and place machine for smt production line 4Panasonic chip mounter machine CM602-L pick and place machine for smt production line 5Panasonic chip mounter machine CM602-L pick and place machine for smt production line 6



Panasonic chip mounter machine CM602-L pick and place machine for smt production line 7Panasonic chip mounter machine CM602-L pick and place machine for smt production line 8Panasonic chip mounter machine CM602-L pick and place machine for smt production line 9

Panasonic chip mounter machine CM602-L pick and place machine for smt production line 10

Panasonic chip mounter machine CM602-L pick and place machine for smt production line 11Panasonic chip mounter machine CM602-L pick and place machine for smt production line 12
