Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Weight (KG): | 1000 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | Chip Mounter CM602-L |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Model Number:: | YSM20 SMDCHIPMOUNTER | Applicable Components:: | Nts: 0402~5050 |
| Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
| Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
| Lead Time: | 7-30days | Port: | Shenzhen |
Panasonic chip mounter CM602-L pick and place machine for smt production line
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
chip mounter CM602-L parameters
| Model ID | CM602-L |
| PCB dimensions (mm) | L 50 x W 50 to L 510 x W 460 |
| High-speed head | 12 nozzles |
| Max.speed | 100 000 cph (0.036 s/chip) |
| Placement accuracy | ±40 µm/chip (Cpk1) |
| Component dimensions (mm) | (01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm |
| High-flexibility head | LS 8 nozzles |
| Max.speed | 75 000 cph (0.048 s/chip) |
| Placement accuracy | ±40 µm/chip, ±35 µm/QFP 24 mm, |
| Component dimensions (mm) | (01005”) 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8 |
| Multi-functional head | 3 nozzles |
| Max.speed | 20 000 cph (0.18 s/QFP) |
| Placement accuracy | ±35 µm/QFP (Cpk1) |
| PCB exchange time | 0.9 s (Board length:up to 240 mm Under optimum conditions) |
| Electric source | 3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA |
| Pneumatic source *1 | 0.49 MPa, 170 L /min(A.N.R.) |
| Dimensions (mm) | W 2 350 x D 2 290 *2 x H 1 430 *3 |
| Mass *4 | 3 400 kg |
Meraif's Customer In 35 Countries Around the WorldSuccessful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

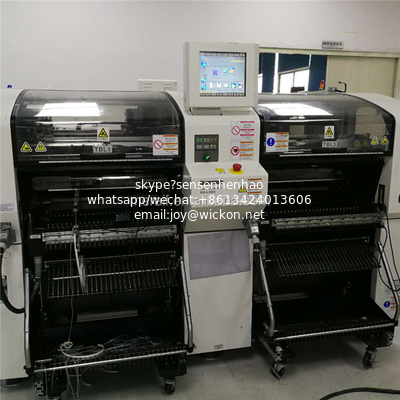

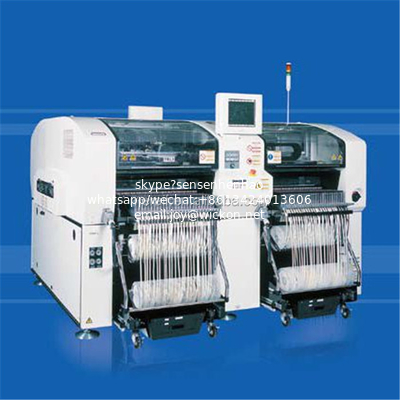

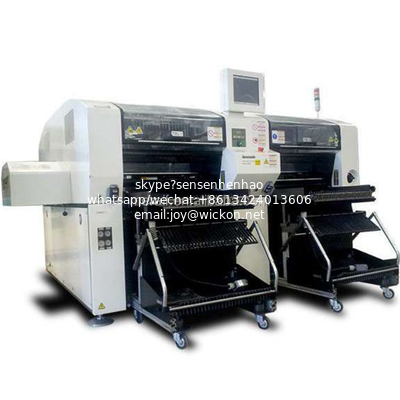

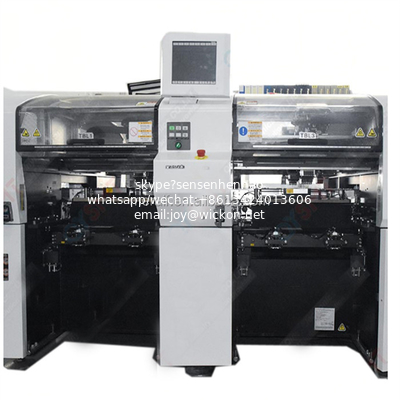

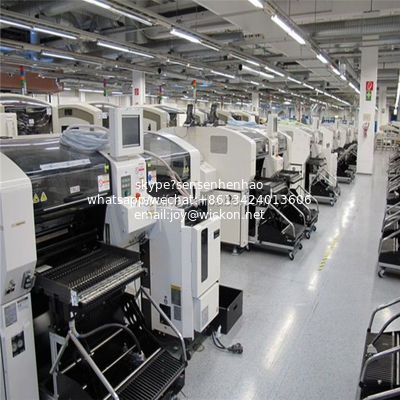

chip mounter CM602-L picture show
