Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus
Products

LCD glass sucher/vacuum suction pen

Barcode Scanner

SMT KIC thermal profiler

SMT cleaning machine

SMT Feeder and nozzle

SMT storage rack cart

Solderind equipment&parts

SMT solder paste mixer/smd counter

SMT AOI SPI machine

SMT loader unloader conveyor

SMT pick and place machine

SMT printer reflow oven

SMT wave oven parts

SMT NSK LUBE grease/grease gun

SMT Splice tape/smt splice tools

ESD Ionizing Air Blower Fan
Contact Us
Contact Now
Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus
  • name
  • name
  • name
  • name
  • name
  • name

Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus

Price: $60,000.00 - $1,100,000.00/pieces
Standard Packaging: I-PULSE Chip Mounter
Supply Capacity: 1000000 Piece/Pieces per Month I-PULSE Chip Mounter
Detail Information
Product Description
Detail Information
Place of Origin
Japan
Brand Name
Chip Mounter M2 Plus
Model Number
I-PULSE Chip Mounter
Condition:
New
Weight (KG):
1000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty Of Core Components:
1 Year
Core Components:
PLC
Warranty:
1 Year
Product Name:
I-PULSE Chip Mounter
Skype:
Sensenhenhao
Whatsapp/wechat:
+8613424013606
Model Number::
YSM20 SMDCHIPMOUNTER
Applicable Components::
Nts: 0402~5050
Usage::
SMD LED SMT
Application::
SMT Assembly Production Line
Film Materials::
Privacy Material
Power Supply::
AC220V 50Hz / AC110V
Lead Time:
7-30days
Port:
Shenzhen
Product Description

Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



Specification of M2  I-PULSE Chip Mounter

I-Pulse- M2 Plus Specification
Board size L50xW50mm – L460 xW410mm
Board thickness 0.5mm-2.0mm
Flow direction Left to right
Conveyor speed Max. 420mm/sec, speed variable, soft stop fuction
Placement speed A (NB1) 0.13 sec/CHIP, 0.38 sec/TSOP32
Placement speed B (NB2) 0.54 sec/QFP100 (when using the optional fixed camera FCO5)
Placement accuracy A (u+3o) CHIP +0.05mm
Placement accuracy B (u+30c) QFP +0.03mm (when using the optional fixed camera FCO3)
Placement angle +180’, resolution 0.015
Z-axis control 6-head independent servo motors, resolution 0.006mm
Component height 15mm (Preplaced components max. 10.5mm)
Components applicable 0603 (option) – SOP, PLCC, QFP, BGA, CSP, connector, and odd-form components
Component carriers 8-56mm tape, stick, tray
Drawback check Vacuum check and vision check
Multi language display Japanese, Chinese, Korean, and English
Board locating method Board edge or tooling hole (option), front reference
Component types 120 types (8mm tape conversion)
Board transfer height 900+20mm
Dimensions, weight L1,750XD1,530XH1, 510mm, approx. 1,950Kg
Power, consumption, capacity 3phase 200V (Option: 208, 220, 240, 380, 400, 415, 440V) +10% 50/60Hz, 4.0KVA, 6.0KVA
Air and consumption 0.5MPa, 692/min A.N.R.

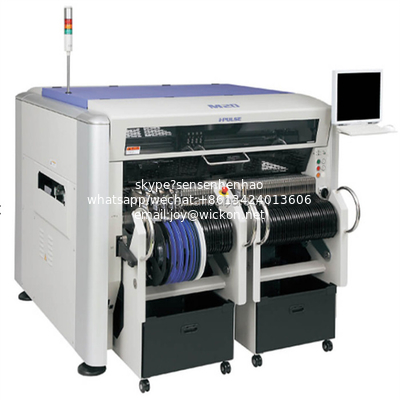

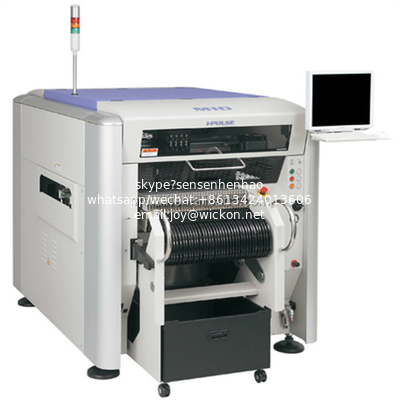

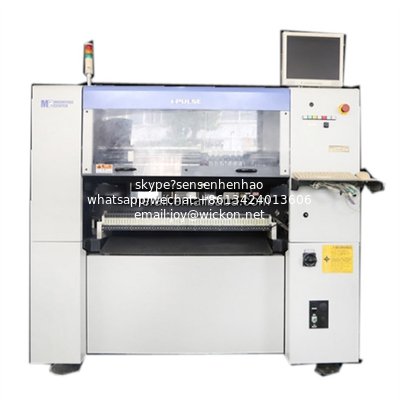

 I-PULSE Chip Mounter picture show
Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 0

Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 1Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 0Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 3Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 4



Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 5

Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 6Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 7Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 8

Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 9

Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 10Used SMT pick and place machine I-PULSE Chip Mounter M2 Plus 11
