Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine
  • name
  • name
  • name
  • name
  • name
  • name

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine

Price: $60,000.00 - $1,100,000.00/pieces
Standard Packaging: chip mounter YSM40R
Supply Capacity: 1000000 Piece/Pieces per Month chip mounter YSM40R
Detail Information
Product Description
Detail Information
Place of Origin
Japan
Brand Name
Yamaha chip mounter
Model Number
chip mounter YSM40R
Condition:
New
Weight (KG):
1000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty Of Core Components:
1 Year
Core Components:
PLC
Warranty:
1 Year
Product Name:
Chip Mounter YSM40R
Skype:
Sensenhenhao
Whatsapp/wechat:
+8613424013606
Model Number::
YSM20 SMDCHIPMOUNTER
Applicable Components::
Nts: 0402~5050
Usage::
SMD LED SMT
Application::
SMT Assembly Production Line
Film Materials::
Privacy Material
Power Supply::
AC220V 50Hz / AC110V
Lead Time:
7-30days
Port:
Shenzhen
Product Description

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



Specification of chip mounter YSM40R

Z:TA-R YSM40R



4-Beam, 4-Head Spec. (YSM40R-4)



Applicable PCB

L700×W460mm to L50×W50mm

Mounting capability
(under optimum conditions as defined by Yamaha Motor)

200,000CPH (When using RS head)

Applicable components

Ultra-High-Speed (RS) Head

0201mm* to 6.5mm (Height 2.0mm or less) *option

Multi (MU) Head

03015mm to 45×60mm (Height 15mm or less)

Mounting accuracy
(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)

+/-35μm (25μm)
Cpk 1.0 (3σ)

Number of component types
* 8mm width tape conversion

Max. 80 feeders with RS heads
Max. 88 feeders with MU heads
Max. 84 feeders with RS x 2 + MU x 2 heads

Power supply

3-Phase AC 200/208/220/240/380/400/416V +/-10%

Air supply source

0.45MPa or more, in clean, dry state

External dimension

L1,000×W2,100×H1,550mm (excluding projections)

Weight

Approx. 2,100 kg

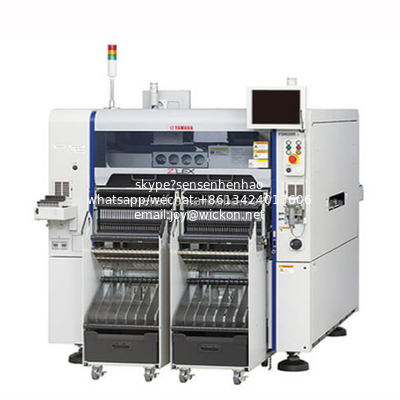

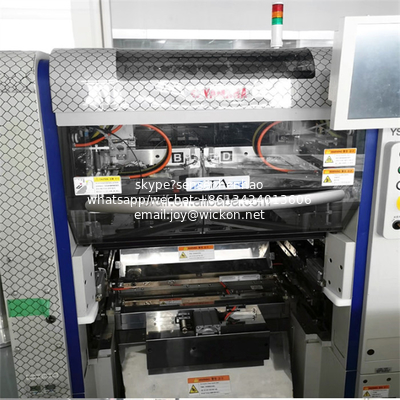

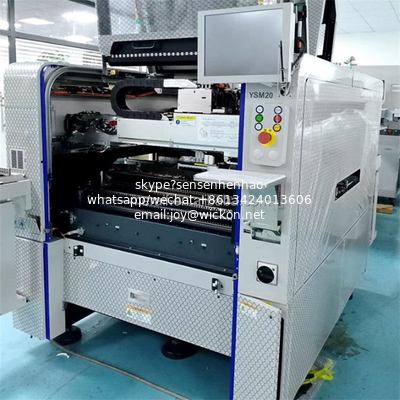

chip mounter YSM40R picture show
Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 0Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 1

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 2Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 3Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 4



Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 5

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 6Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 7Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 8

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 9

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 10Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine 11
