Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Weight (KG): | 1000 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | SAMSUNG CP45F Chip Mounter |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Model Number:: | YSM20 SMDCHIPMOUNTER | Applicable Components:: | Nts: 0402~5050 |
| Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
| Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
| Lead Time: | 7-30days | Port: | Shenzhen |
SAMSUNG CP45F chip mounter Original Used SMT Machine For Pick And Place Machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
SAMSUNG CP45F chip mounter parameters
| Samsung CP45FV NEO Specifications: | ||
| Visual | Fly Vision + Stage Vision | |
| Heads | 6 Heads | |
| Mounting Speed | Chip | 0.178sec / chip IPC9580 14900CPH (1608) |
| IC Flight Camera | 0.75sec / QFP64 | |
| Fixed camera | 1.6sec / QFP256 | |
| Mounting accuracy | 0603 (0201) Chip ± 0.08mm | |
| 1005Chip ~ ± 0.1mm | ||
| QFP ± 0.04mm | ||
| Component Dimensions | Flight Camera | 1005 (0402) ~ 22mm IC, 0603 (0201) ~ 12mm (Option) |
| Standard ~ | Fixed Camera (FOV35) | ~ 32mm IC (Lead Pitch: 0.4mm) |
| Special | Fixed Camera (FOV20) | ~ 17mm IC (Lead Pitch: 0.3mm) |
| Special | Fixed Camera (FOV45) | ~ 42mm IC (Lead Pitch: 0.5mm) |
| Leading Pitch (QFP) 0.3mm (with FOV20 Vision) | ||
| Min. Ball Pitch (BGA) 0.5mm (with FOV20 Vision) | ||
| Parts up to 15mm (9mm: with flying vision) | ||
| PCB Size | 50mm x 50mm Min. | |
| 460mm x 400mm Max. | ||
| PCB Thickness | 0.38mm to 4.2mm | |
| Max Feeder Capacity | 104 Feeders | |
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

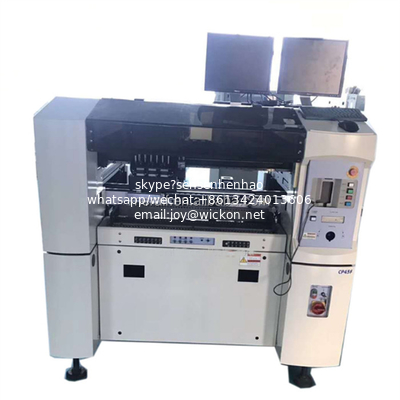

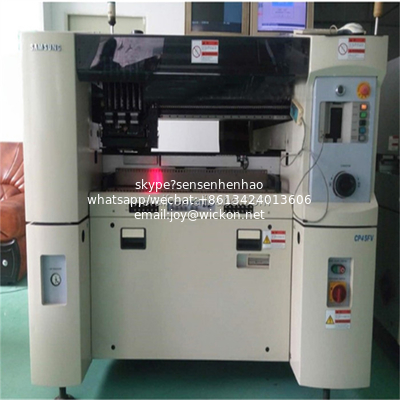

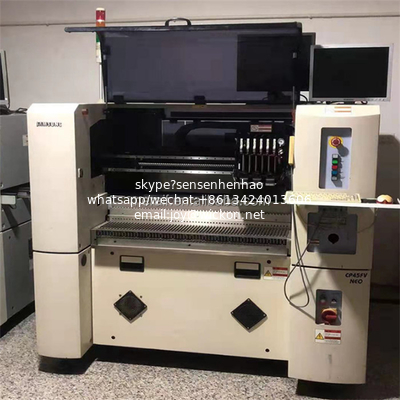

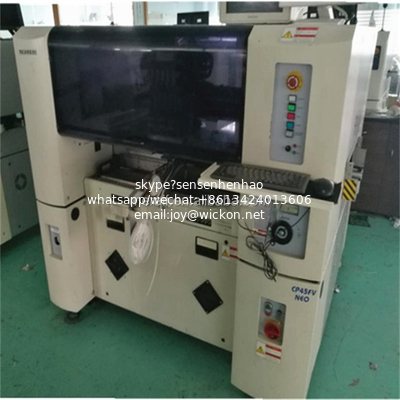

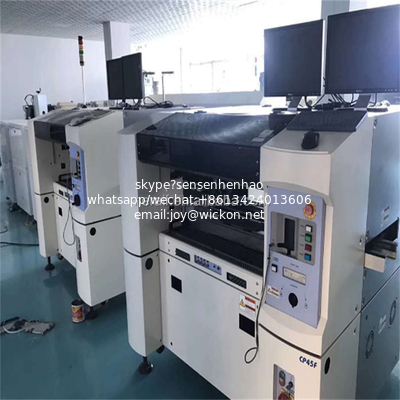

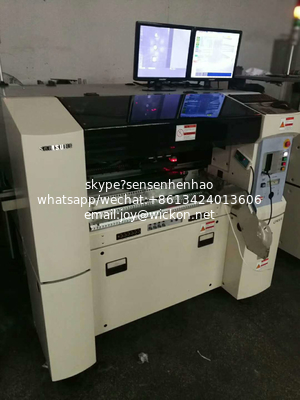

SAMSUNG CP45F chip mounter picture show
Contact Person: Miss. Joy Liang
Tel: +8618824670322
