High-speed, high-precision flipchip hybrid placer YSH 20 SMT pick and place machine Yamaha YSH20 chip mounter

Products

LCD glass sucher/vacuum suction pen

SMT solder paste mixer/smd counter

SMT NSK LUBE grease/grease gun

SMT Splice tape/smt splice tools

High-speed, high-precision flipchip hybrid placer YSH 20 SMT pick and place machine Yamaha YSH20 chip mounter

Price:	$60,000.00 - $1,000,000.00/pieces
Standard Packaging:	flipchip hybrid placer
Supply Capacity:	1000000 Piece/Pieces per Month flipchip hybrid placer

Detail Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

flipchip hybrid placer

Model Number

YSH20 chip mounter

Condition:

Weight (KG):

Showroom Location:

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Hot Product 2019

Warranty Of Core Components:

1 Year

Core Components:

Warranty:

1 Year

Product Name:

Flipchip Hybrid Placer

Skype:

Sensenhenhao

Whatsapp/wechat:

+8613424013606

Model Number::

YSM20 SMDCHIPMOUNTER

Applicable Components::

Nts: 0402~5050

Usage::

SMD LED SMT

Application::

SMT Assembly Production Line

Film Materials::

Privacy Material

Power Supply::

AC220V 50Hz / AC110V

Lead Time:

7-30days

Port:

Shenzhen

Product Description

High-speed, high-precision flipchip hybrid placer YSH 20 SMT pick and place machine Yamaha YSH20 chip mounter

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

flipchip hybrid placer YSH20 Features

4,500 UPH (0.8 sec/unit)

+/- 10 µm (3σ) mounting accuracy (When using Yamaha’s standard components)

YWF wafer supply unit “6/8/12 inch”, “expand ring”, and “0 angle correction” applicable

0.6 × 0.6mm to 18 × 18mm components applicable

Model	YSH20
Applicable PCB	L50 x W30mm to L250 x W200mm ** “Up to L340 x W340mm” is applicable. Please contact us separately.
Mounting Accuracy (When Using Yamaha’s Standard Components)	[2F2F heads & multi-camera type] Repeatability (3): +/- 0.010mm/unit +/- 0.05 degree [4M4M heads & multi-camera type] ** under development Repeatability (3): +/- 0.010mm/unit +/- 0.05 degree
Mounting Capability (Under Optimum Condition)	[2F2F heads & multi-camera type] 4,500 UPH (0.8 sec/unit) excluding dipping 3,600 UPH (1.0 sec/unit) including dipping [4M4M heads & multi-camera type] under development 5,500 UPH (0.65 sec/unit) excluding dipping 4,500 UPH (0.8 sec/unit) ** including dipping
Component Supply Configuration	Wafer (6/8/12 inch flat ring), waffle tray, tape reel (8/12/16 mm width)
Applicable Components	[Multi-camera] Flipchip: 0.6 x 0.6mm to 18 x 18mm Bump diameter 60μm or more Bump pitch 110 μm or more, Height 0.7mm or less SMD Chip: 0402 (Metric base) to 20 x 20mm, Height 6mm or less
Power Supply	3-phase AC 200/208/220/240/380/400/416V +/- 10% 50/60Hz
Air Supply Source	0.5 MPa or more, in clean, dry state
External Dimension ** Excluding Projections	L1,400 x W1,820 x H1,515mm (main unit only) L1,400 x W2,035 x H1,515mm (when YWF wafer supply unit is installed)
Weight	Approx. 2,470kg (main unit only) Approx. 2,780kg (when YWF wafer supply unit is installed)

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

5. We Can Solve Any Question About SMT

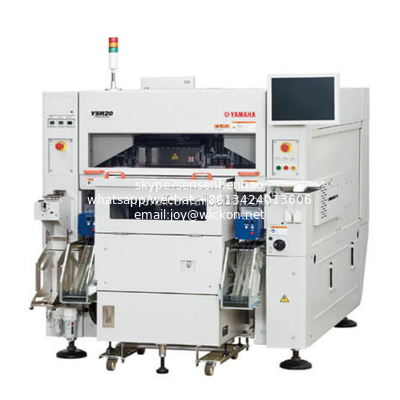

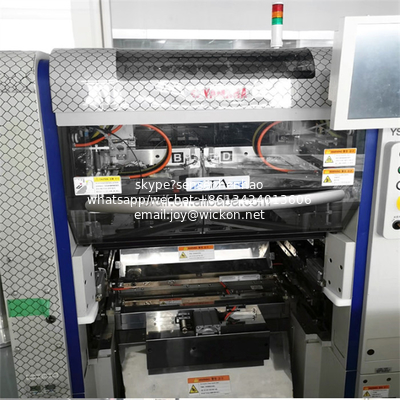

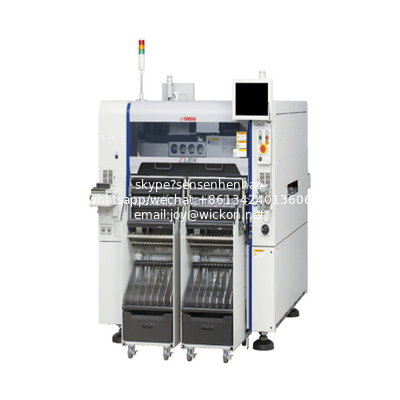

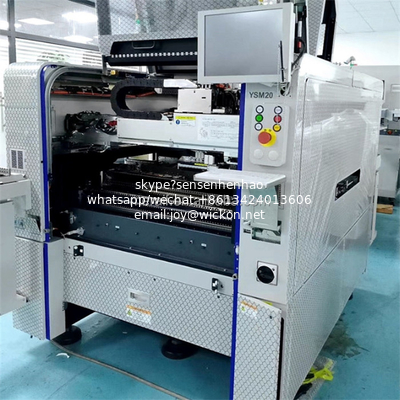

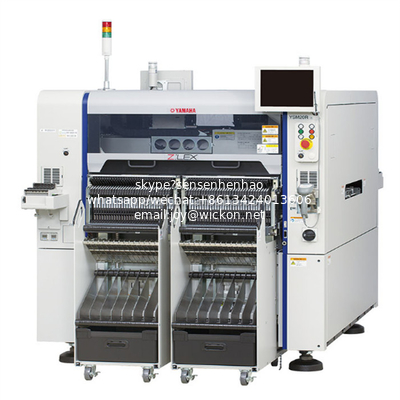

flipchip hybrid placer YSH20 picture show
