SMT pick and place machine Yamaha S10 used chip mounter machine

SMT pick and place machine Yamaha S10 used chip mounter machine

Price: $60,000.00 - $1,000,000.00/pieces
Standard Packaging: used chip mounter machine
Supply Capacity: 1000000 Piece/Pieces per Month used chip mounter machine
Detail Information
Place of Origin
Japan
Brand Name
used chip mounter machine
Model Number
pick and place machine Yamaha S10
Condition:
New
Weight (KG):
1000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty Of Core Components:
1 Year
Core Components:
PLC
Warranty:
1 Year
Product Name:
Used Chip Mounter Machine
Skype:
Sensenhenhao
Whatsapp/wechat:
+8613424013606
Model Number::
YSM20 SMDCHIPMOUNTER
Applicable Components::
Nts: 0402~5050
Usage::
SMD LED SMT
Application::
SMT Assembly Production Line
Film Materials::
Privacy Material
Power Supply::
AC220V 50Hz / AC110V
Lead Time:
7-30days
Port:
Shenzhen
Product Description

SMT pick and place machine Yamaha S10 used chip mounter machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

used chip mounter machine yamaha S10 Features



Model Number

S10

Board size(with buffer unused)

Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955)

Board size(with input or output buffer used)

Min. L50 x W30mm to Max. L420 x W510mm

Board size(with input and output buffers used)

Min. L50 x W30mm to Max. L330 x W510mm

Board thickness

0.4 - 4.8mm

Board flow direction

Left to right (Std)

Board transfer speed

Max 900mm/sec

Placement speed (12 heads + 2 theta) Opt. Cond.

0.08sec/CHIP (45,000CPH)

Placement accuracy A (μ+3σ)

CHIP +/-0.040mm

Placement accuracy B (μ+3σ)

IC +/-0.025mm

Placement angle

+/-180 degrees

Z axis control / Theta axis control

AC servo motor

Component height

Max 30mm*1 (Pre-placed components: max 25mm)

Applicable components

0201 (mm) – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)

Component package

8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray

Drawback check

Vacuum check and vision check

Screen language

English, Chinese, Korean, Japanese

Board positioning

Board grip unit, front reference, auto conveyor width adjustment

Component types

Max 90 types (8mm tape), 45 lanes x 2

Transfer height

900 +/- 20mm

Machine dimensions, weight

L1250xD1750xH1420mm, Approx. 1,200kg

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

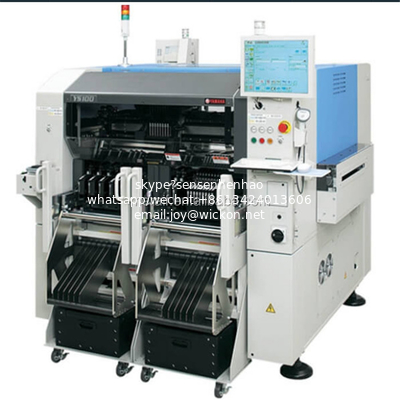

used chip mounter machine picture show

SMT pick and place machine Yamaha S10 used chip mounter machine 0SMT pick and place machine Yamaha S10 used chip mounter machine 1

SMT pick and place machine Yamaha S10 used chip mounter machine 2SMT pick and place machine Yamaha S10 used chip mounter machine 3SMT pick and place machine Yamaha S10 used chip mounter machine 4

SMT pick and place machine Yamaha S10 used chip mounter machine 5SMT pick and place machine Yamaha S10 used chip mounter machine 6SMT pick and place machine Yamaha S10 used chip mounter machine 7

SMT pick and place machine Yamaha S10 used chip mounter machine 8

SMT pick and place machine Yamaha S10 used chip mounter machine 9SMT pick and place machine Yamaha S10 used chip mounter machine 10
