Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Weight (KG): | 1000 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | DEK PCB Screen Printer |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Model Number:: | YSM20 SMDCHIPMOUNTER | Applicable Components:: | Nts: 0402~5050 |
| Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
| Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
| Lead Time: | 7-30days | Port: | Shenzhen |
smt Automatic DEK PCB Screen Printer DEK NeoHorizon printer SMT Stencil Printer
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
DEK PCB Screen Printer:
DEK NeoHorizon
With its modular design, the latest generation of our powerful screen printers is customizable for any customer-specific or application-specific requirements. Clamping systems, conveyors, tooling, paste management, verification – the DEK NeoHorizon can be equipped and/or retrofitted with many powerful and precision-enhancing options. All this flexibility can be controlled easily and comfortably with the leading printer software: DEK Instinctiv™ V9.
Two basic printer configurations are available: The DEK NeoHorizon 03 iX with the DEK HawkEye 750 camera system, semi-automatic stencil load and the IUSC understencil cleaning system features a core cycle time of 8.0 seconds and a machine accuracy of ±20 µm @ 2 Cmk for use in high-mix environments. The DEK NeoHorizon 01 iX with its core cycle time of 6,5 seconds and enhanced machine accuracy of ±15 µm @ 2 Cmk was designed for applications with particularly high demands on quality and throughput, for example for 0201 (metric) components. This configuration is equipped with the high-resolution DEK HawkEye 1700 camera, a fully automatic stencil alignment system, and the high-end DEK Cyclone understencil cleaning system.
Back-to-back: Single-track, dual-track, and back to single-track
The innovative design of the new printer and its especially robust cover make it possible to perform all control and maintenance operations from the front of the machine. As a result, you can now position two DEK NeoHorizons back-to-back for a dual-track solution that’s smart, flexible and future-proof. The two machines can nevertheless be configured and operated independently of each other. And when the dual-track solution is no longer needed, you simply separate the two printers and use them on separate lines again. The perfect combination of flexibility and investment protection.
Technical Data:
| Standard configuration | DEK NeoHorizon 01iX | DEK NeoHorizon 03iX |
| Machine alignment capability | ± 12.5 μm @ 2.0 Cmk (6 sigma) | ± 12.5 μm @ 2.0 Cmk (6 sigma) |
| Machine alignment accuracy | ± 15 μm @ 2.0 Cmk (± 6 sigma) | ± 20 μm @ 2.0 Cmk (± 6 sigma) |
| Process alignment accuracy | ± 20 μm @ 2.0 Cpk (6 sigma)# | ± 25 μm @ 2.0 Cpk (6 sigma)# |
| Standard cycle time | 6.5 seconds + process | 8 seconds + process |
| Maximum printing surface | 510 mm (X) × 508,5 mm (Y) | |
| User interface | Touchscreen, keyboard and trackball, | |
| Camera | DEK HawkEye 1700 digital camera | DEK HawkEye 750 digital camera |
| Squeegee adjustment | Motorized with squeegee pressure feedback | |
| Stencil loading | Automatic, incl. squeegee drip catcher | Semi-automatic,incl. squeegee drip catcher |
| Stencil alignment | Motorized (actuators); aligned on | Motorized (actuators); aligned in |
| DEK ProFlow | Optional | |
| Understencil Cleaning | DEK Cyclone 300 mm/400 mm/515 mm | DEK IUSC 300 mm/400 mm/520 mm |
| Technical documentation | Printed documents: User manual, installation instructions, circuit diagrams. | |
| Compressed air supply | 5-8 bar at ~5 litres/minute | |
| Power supply | 100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz | |
| Weight | Approx. 690 kg depending on selected options | |
| * The machine and repeat accuracy check will be conducted using production-typical process variables. The repeat accuracy rating comprises the printing speed, squeegee operation, table movements and camera movements. | ||
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup

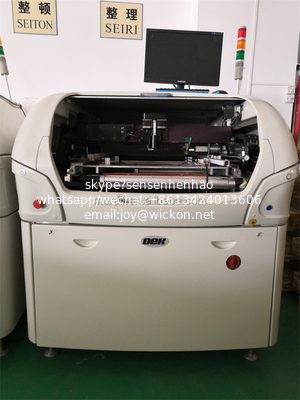

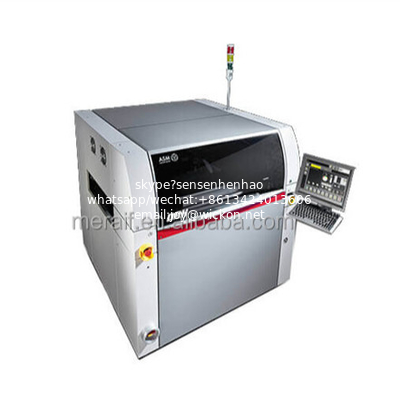

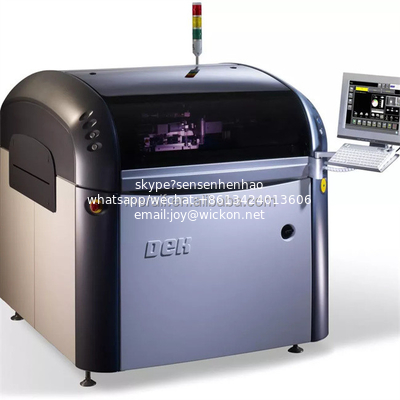

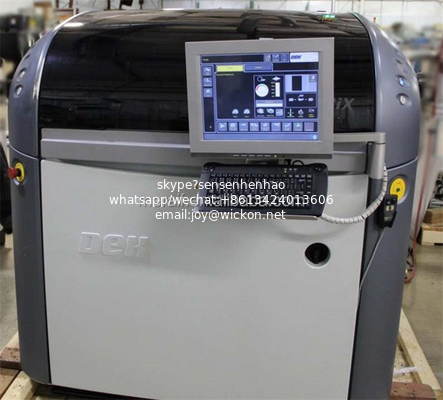

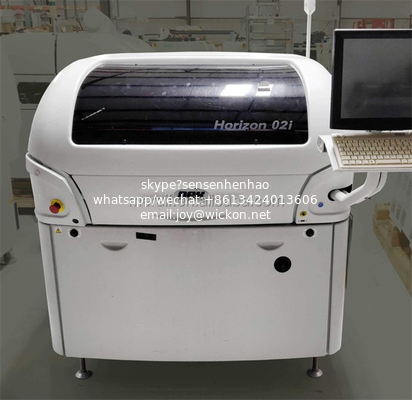

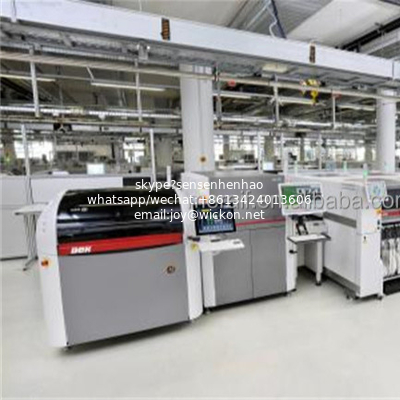

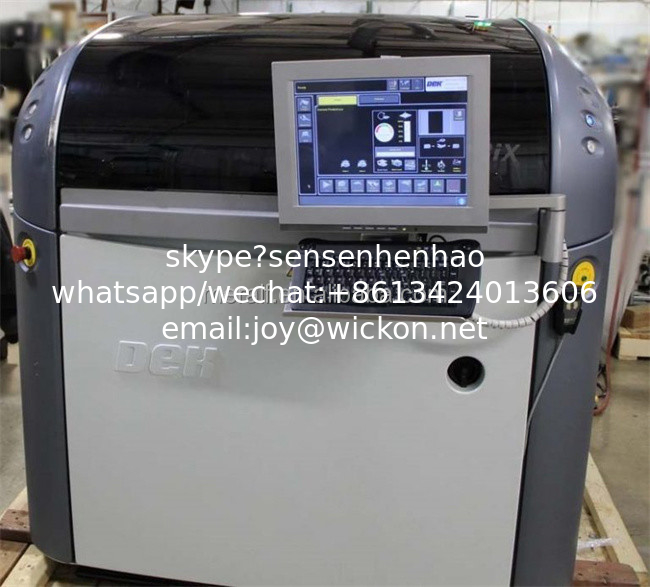

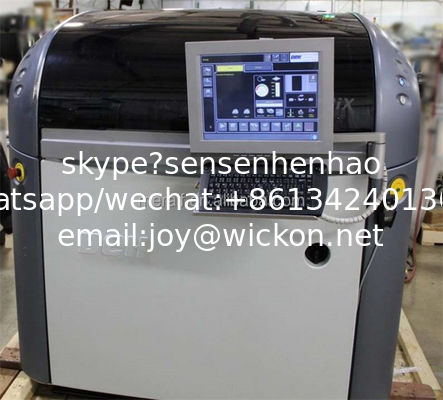

DEK PCB Screen Printer picture show
