Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print

Products

LCD glass sucher/vacuum suction pen

SMT solder paste mixer/smd counter

SMT NSK LUBE grease/grease gun

SMT Splice tape/smt splice tools

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print

Price:	$60,000.00 - $1,000,000.00/pieces
Standard Packaging:	Automatic Dek horizon 8 printer
Supply Capacity:	1000000 Piece/Pieces per Month Automatic Dek horizon 8 printer

Detail Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

DEK Stencil Printer

Model Number

Dek horizon 8 printer

Condition:

Weight (KG):

Showroom Location:

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Hot Product 2019

Warranty Of Core Components:

1 Year

Core Components:

Warranty:

1 Year

Product Name:

Automatic Dek Horizon 8 Printer

Skype:

Sensenhenhao

Whatsapp/wechat:

+8613424013606

Model Number::

YSM20 SMDCHIPMOUNTER

Applicable Components::

Nts: 0402~5050

Usage::

SMD LED SMT

Application::

SMT Assembly Production Line

Film Materials::

Privacy Material

Power Supply::

AC220V 50Hz / AC110V

Lead Time:

7-30days

Port:

Shenzhen

Product Description

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Automatic Dek horizon 8 printer :

DEK Horizon 8
DEK’s Horizon platforms offer a comprehensive array of sophisticated features as standard, including optimised printer frame technology, fast product changeover, 2 Cpk print process capability and 6-sigma production performance. The DEK HawkEye 750 camera system, semi-automatic stencil load and the understencil cleaning system features a core cycle time of 12.0 seconds and a machine accuracy of ±25 µm @ 2 Cmk for use in high-mix environments. The 12-second core cycle timeDEK camera Instinctiv T V9 user interface ISCAN™ Intelligent Scalable Control Area Network .Full size stencil frame capacity.Horizon 08 – Best-in-class performance Features:
Process alignment capability 2 Cpk @ +/-25 microns 6-Sigma
Machine alignment capability 2 Cpk @ +/- 12.5 microns 6-Sigma

Standard configuration	DEK Horizon 08 EE
Machine alignment capability	>2.0 Cpk @ +/- 12.5µm, (±6 Sigma) *
Process Alignment Capability	>2.0 Cpk @ +/- 25µm, (±6 Sigma) *
Standard cycle time	10 seconds + process
Maximum printing surface	508 mm (X) × 508 mm (Y)
User interface	Touchscreen, keyboard and trackball, DEK Instinctiv V9 software
Camera	DEK HawkEye 1700 digital camera with 2-way LED illumination
Squeegee adjustment	Motorized with squeegee pressure feedback
Stencil loading	Automatic, incl. squeegee drip catcher
Stencil alignment	Motorized (actuators); aligned on X- and Y-axis and rotation
DEK ProFlow	Optional
Understencil Cleaning	DEK Cyclone 300 mm/400 mm/515 mm
Technical documentation	Printed documents: User manual, installation instructions, circuit diagrams. Technical instructions and videos that explain all operating steps are preinstalled.
Compressed air supply	5-8 bar at ~5 litres/minute
Power supply	100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz
Weight	Approx. 690 kg depending on selected options
* The machine and repeat accuracy check will be conducted using production-typical process variables. The repeat accuracy rating comprises the printing speed, squeegee operation, table movements and camera movements.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

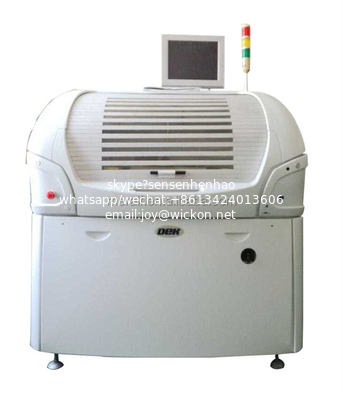

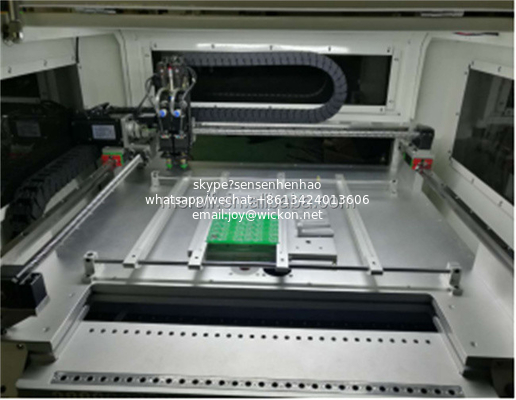

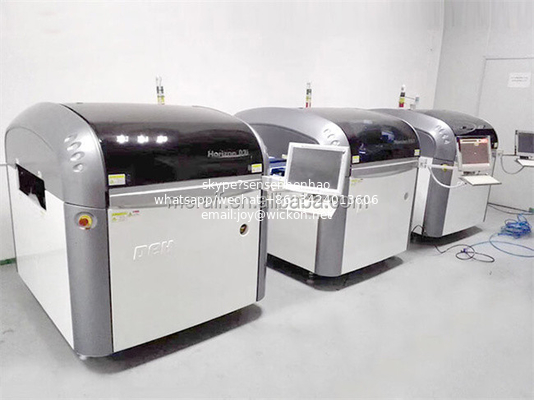

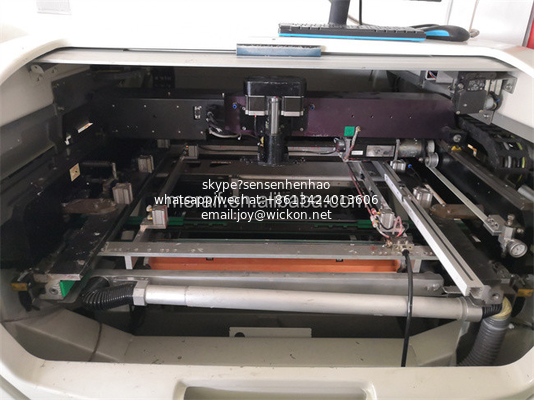

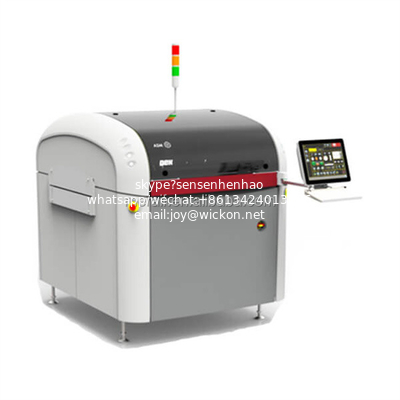

Automatic Dek horizon 8 printer picture show

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 1

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 6

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 8

Automatic Dek horizon 8 printer SMT soldering printer for SMT machine line PCB print 9
