Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Weight (KG): | 1000 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | Pcb Solder Screen Printers |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Model Number:: | YSM20 SMDCHIPMOUNTER | Applicable Components:: | Nts: 0402~5050 |
| Usage:: | SMD LED SMT | Application:: | SMT Assembly Production Line |
| Film Materials:: | Privacy Material | Power Supply:: | AC220V 50Hz / AC110V |
| Lead Time: | 7-30days | Port: | Shenzhen |

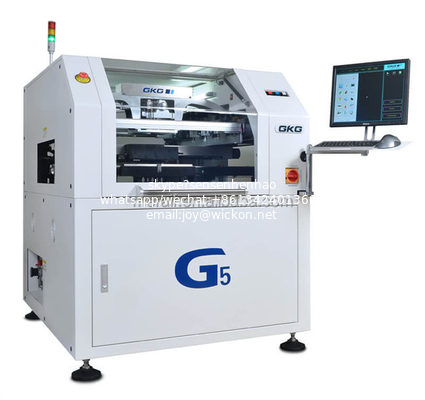

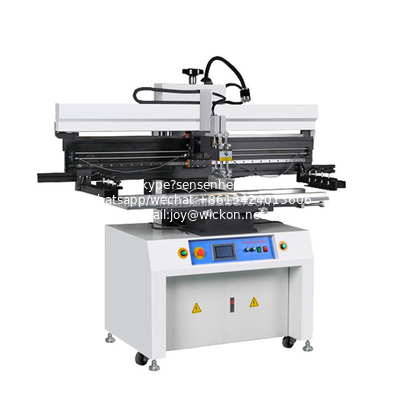

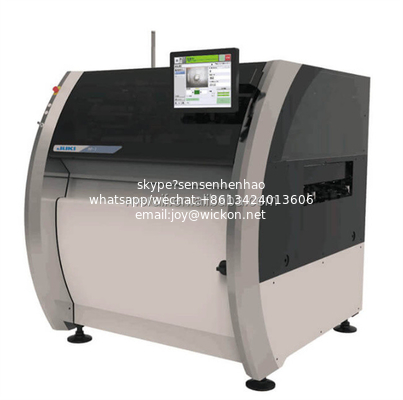

1200mm Smt Pcb Solder Screen Printers Full Auto Paste Printer machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Pcb Solder Screen Printers printer :
Automatic 1200MM Solder paste printer
1. Product Functions
F-1200 a high accuracy lengthen printing robot designed for screen printing or stencil printing in SMT industry.
2. Product Features
a) Support wide spectrums of PCB size from 50mm x 50mm to 1200mm x 340mm and PCB thickness from 0.6mm to 6mm.
b) High printing resolution:
1. High positioning accuracy, repeat positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2. Support glue printing
c) Automatic control improves production efficiency, controls quality and saves production cost:
1. Automatic stencil positioning;
2. Automatic PCB position calibrating.
3. Automatic adjustment of squeegee pressure;
4. Automatic printing;
5. Automatic stencil cleaning (dry-type, wet-type);
d) Adopt company independently developed suspended print head with programmable pressure adjustment. Support on-line real time pressure feedback and automatic squeegee pressure balancing.
e) Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.
f) Multi-functional PCB positioning and clamping system, for convenient fast and accurate PCB positioning.
g) Upward and downward visual positioning.
h) Built-in image processing system;
i) Support 2D, SPC functions.
3. Applicable pitches of Components
a) SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.
b) IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball 0.2 mm.
c) Printing size?80mm x 50mm ~1200 mm x 340 mm;
d) PCB thickness: 0.6 mm ~ 6 mm
e) FPC thickness: less than 0.6 mm (excluding jig)
4. Applicable PCB Types
Applicable to PCB types of LED, mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, space flight and aviation, as well as production and processing of general electronics products
Specification
| Items | Parameters | ||
| Repeat Position Accuracy | ±0.01mm | ||
| Printing Accuracy | ±0.025mm | ||
| Printing Speed/Cycle Time | <15s (Exclude Printing & Cleaning) | ||
| Products Changeover | <5Min | ||
| Screen Stencil Size/Min | 1100mm*300(Standard)?730mm*300mm(Optional, pressing plate on guide rail shall be replaced) | ||
| Screen Stencil Size/Max | 1500mm*750mm | ||
| Screen Stencil Thickness | 20mm ~ 40mm | ||
| PCB Size/Min | 80*50mm | ||
| PCB Size/Max | 1200*340mm | ||
| PCB Thickness | 0.8~6mm | ||
| PCB Warpage Ratio | 1%Based on diagonal length? | ||
| Bottom of Board Size | 15mm (distance from pins to PCB) | ||
| Edge of Board Size | 3mm (distance before PCB clamping) | ||
| Transport High | 900±40mm | ||
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Transport Speed | 50-1200mm/sec programmable control | ||
| Board Location | Support System | Magnetic pin/Side support block/Flexible automatic pin?optional? | |
| Clamping System | Elastic side clamping/Vacuum nozzle/Extension-type Z-direction tableting | ||
| Print head | Programmable motor driven print head (pneumatic control print head: optional) | ||
| Squeegee Speed | 10~200mm/sec | ||
| Squeegee Pressure | 0-15kg programmable control | ||
| Squeegee Angle | 60°(Standard )/55°/45° | ||
| Squeegee Type | Steel squeegee (standard), rubber squeegee, and customizable other types of squeegee . | ||
| Stencil Separation Speed | 0.1~20mm/sec Programmable | ||
| Cleaning Method | Dry-type, wet-type, optional vacuum-type | ||
| Table Adjustment Range | X:±10mm;Y:±10mm;?:±2° | ||
| Type of Fiducial Mark | Standard geometry shape of fiducial point, bonding pad / stencil hole | ||
| Camera System | Single digital camera with upward/downward vision system | ||
| Air Pressure | 4~6Kg/cm2 | ||
| Air Consumption | About 0.07m³/min | ||
| Control Method | PC Control | ||
| Power Supply | AC:220±10%,50/60HZ 1? 1.5KW | ||
| Machine Dimensions | 2220(W) *1220(D) *1500(H)mm (excluding the height of indicating lighthouse) | ||
| Weight | Approx:1500Kg | ||
| Operation Temperature | -20°C ~ +45°C | ||
| Operation Humidity | 30%~60% | ||
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.

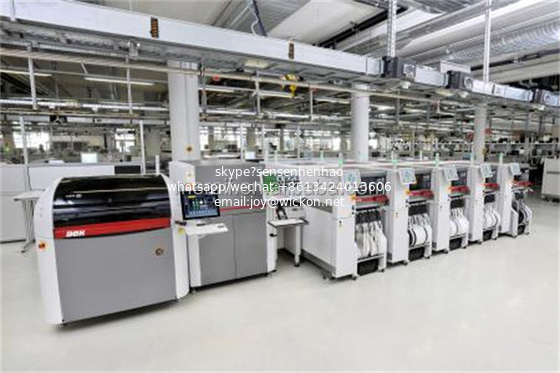

For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup

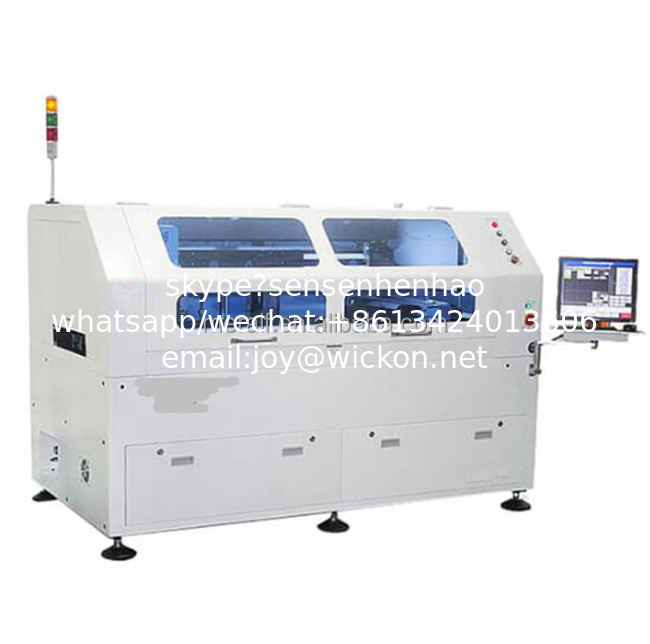

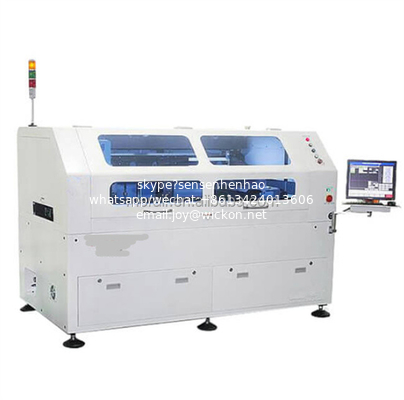

Pcb Solder Screen Printers picture show
Contact Person: Miss. Joy Liang
Tel: +8618824670322
