SMT machine YAMAHA YSM10 pick and place machine Multi-Functional Chip Mounter Machine
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
We are smt solution provider more then 16 years for electronic fatcories.
Used Yamaha YSM10 surface mounter for PCB led assembly line
YSM10 is a new surface mounter*1 that is the world's fastest in its class*2 at 46,000CPH*3, will be available for purchase from February 1, 2017. This new addition to the line-up is a compact, high-speed model with space-saving qualities, and provides a combination of component compatibility and versatility. In addition to the high-end ultra-high-speed modular Z:TA-R YSM40R, and the upper-middle class all-round versatile high-efficiency modular Z:LEX YSM20, this new release enables the YSM series line-up to provide a range of optimum lines designed for a variety of production formats and scale sizes.
The YSM10 is newly developed based on the three "Ones" concept and provides 1) a combination of a mounting speed that is number one in its class, 2) a one-head-solution that does not require replacement, and 3) an integration of three models of the YS12 type into one platform.
While in pursuit of the ideal concept – a 1-head solution with versatility from small chips to large components, the world's fastest speed in its class, and without the need for head replacement - the new model also has a high-speed general-purpose head similar to that used in the Z:LEX YSM20, and a new generation servo system etc. creating a high-class model with the latest technology.
Simultaneously, the specifications of all three current models of the YS12 series have been integrated into one platform featuring the flexibility and mobility of the compact high-speed modular YS12; the partly simplified version of the compact economy-modular YS12P, and the highly-versatile compact modular YS12F.
In addition, pickup and recognition errors are suppressed along with reduced loss in machine stoppage due the integration of the common functionalities of the two high level machines, the Z:TA-R YSM40R and the Z:LEX YSM20 with their e-Vision for automatically creating and tracking component data, Smart Recognition for easily creating component data from complicated shapes, and Pickup MACS system for automatic correction of the component pickup position.
Yamaha Motor is set to exhibit the new YSM10 at the 46th INTERNEPCON JAPAN trade show for electronics manufacturing and surface-mounting technology (SMT), to be held from January 18-20 at the Tokyo Big Sight (Koto-ku, Tokyo).
*1 Surface mounters: Production equipment designed to mount various electrical components onto PCBs (Printed Circuit Boards), which are then incorporated into electronic products.
*2 World's fastest surface mounter in the 1-Beam, 1-Head Class in comparison of mounting capacity (CPH) under optimal conditions. January 10, 2017, Yamaha Motor data
*3 CPH (Chips Per Hour): Total number of chips that can be mounted per hour (unit time). Indicates processing capacity under various conditions.
YSM10 pick and place machine Specification:
1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)

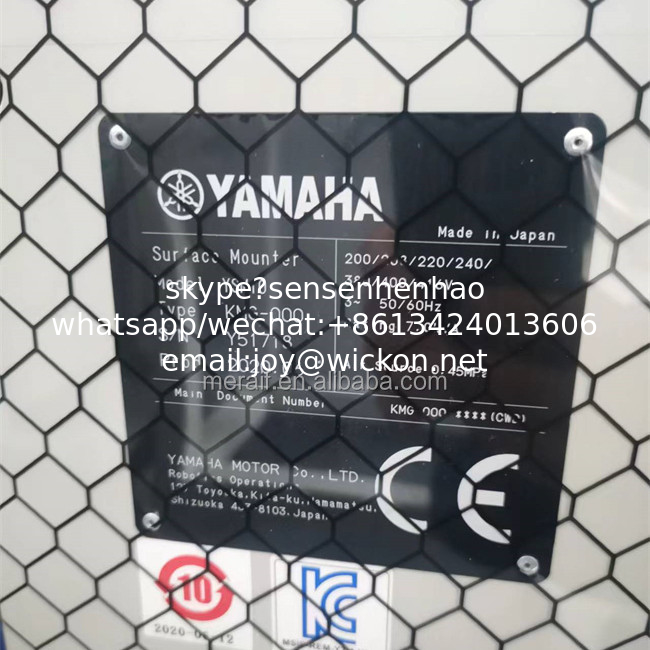

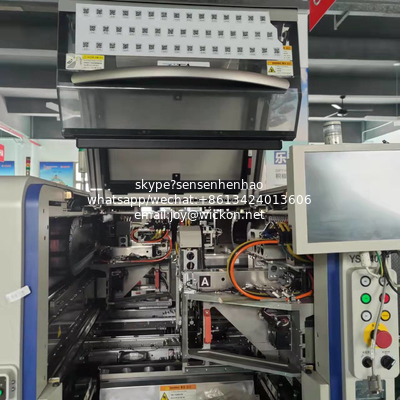

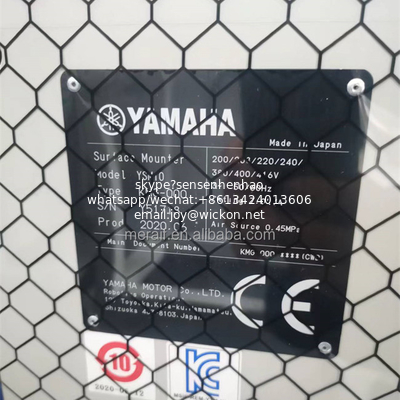

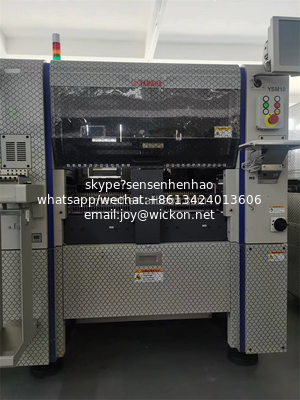

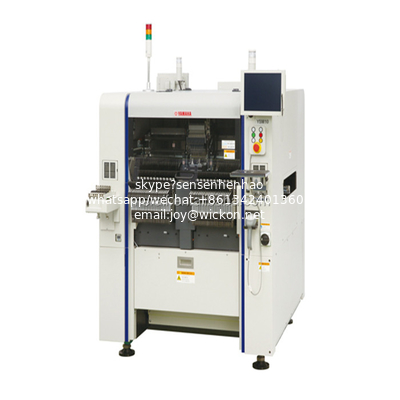

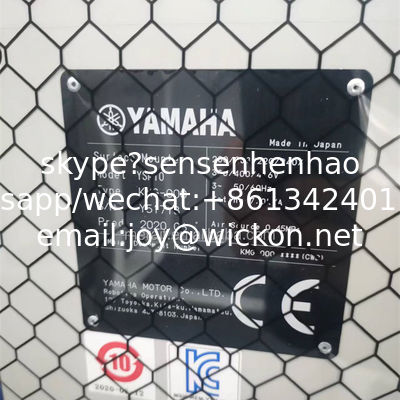

YSM10 pick and place machine picture show
