Product Details:
Payment & Shipping Terms:
|
| Condition: | Used | Weight (KG): | 1000 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | Yamaha YS24 |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Model Number:: | Yamaha YS24 | Applicable PCB: | L50xW50mm-L700xW460mm |
| Mounting Capability: | 72,000CPH | Applicable Components: | 0402 To 32X32mm MAX (Height 6.5mm Or Less) |
| Components Types: | 120 Types (Max:8mm Wide Tape Reel Conversion) | Power Supply: | Three Phase AC 200/208/220/240/380/400/416 V±10% |
| In Stock: | Yes | Port: | Shenzhen |
high quality pick and place machine Yamaha YS24 PCB chip mounter machine for smt machine line
whatsapp:+8613424013606,skype :sensenhenhao
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
We are smt solution provider more then 16 years for electronic fatcories.
Used Yamaha YS24 surface mounter for PCB led assembly line

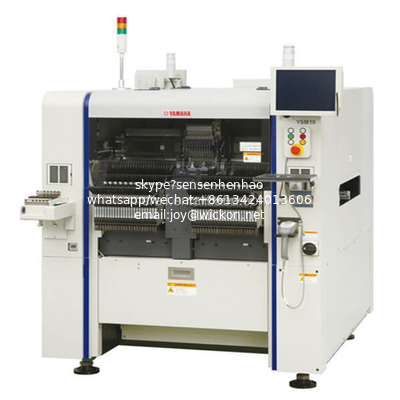

The YAMAHA Pick and Place Machine YSM10 is newly developed based on the three "Ones" concept and provides 1) a combination of a mounting speed that is number one in its class, 2) a one-head-solution that does not require replacement, and 3) an integration of three models of the YS12 type into one platform.
Simultaneously, the specifications of all three current models of the YAMAHA Pick and Place Machine YS12 series have been integrated into one platform featuring the flexibility and mobility of the compact high-speed modular YS12; the partly simplified version of the compact economy-modular YS12P, and the highly-versatile compact modular YS12F.
In addition, pickup and recognition errors are suppressed along with reduced loss in machine stoppage due the integration of the common functionalities of the two high level machines.
Yamaha YS24 Specification:
| Model Name | YS24 |
| Applicable PCB | L50×W50mm-L700×W460mm |
| Mounting Capability | 72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor) |
| Mounting Accuracy | ±0.05mm (μ+3σ), ±0.03mm(3σ) |
| Applicable Components | 0402 to 32×32mm MAX (Height 6.5mm or less) |
| Components Types | 120 types (Max./8mm wide tape reel conversion) |
| Power Supply | Three phase AC 200/208/220/240/380/400/416 V±10% |
| Air Supply Source | 0.45Mpa |
| External Dimensions | L1254×W1687×H1445mm (Excluding protrusions) |
| Weight | Approx. 1700Kg |

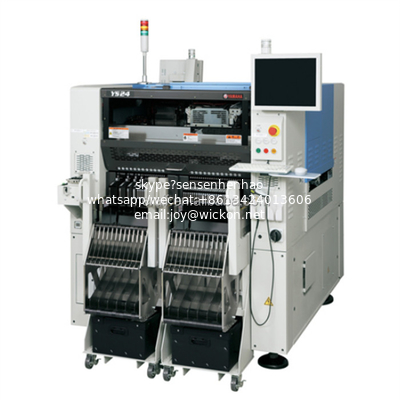

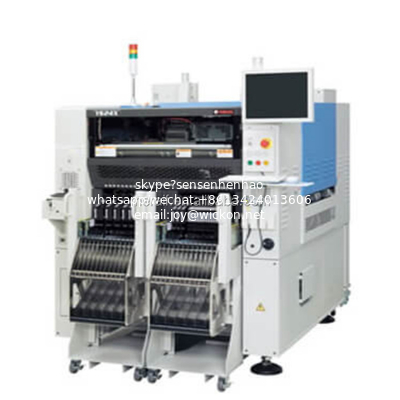

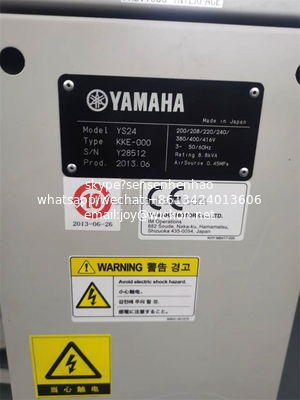

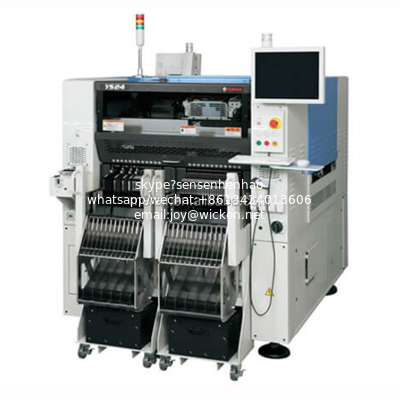

Yamaha YS24 picture show
