YG12F pick and place machine Yamaha Chip Mounter SMT PCB assembly line

Price:	$50,000.00 - $350,000.00/pieces
Standard Packaging:	YG12F pick and place machine
Supply Capacity:	1000000 Piece/Pieces per Month YG12F pick and place machine

Detail Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

YG12F pick and place machine

Model Number

pick and place machine

Condition:

Weight (KG):

Showroom Location:

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Warranty:

1 Year

Product Name:

YG12F Pick And Place Machine

Skype:

Sensenhenhao

Whatsapp/wechat:

+8613424013606

Model Number::

YSM20 SMDCHIPMOUNTER

Applicable Components::

Nts: 0402~5050

Usage::

SMD LED SMT

Application::

SMT Assembly Production Line

Film Materials::

Privacy Material

Power Supply::

AC220V 50Hz / AC110V

Lead Time:

7-30days

Port:

Shenzhen

Product Description

YG12F pick and place machine Yamaha Chip Mounter SMT PCB assembly line

whatsapp:+8613424013606,skype :sensenhenhao

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

YG12F pick and place machine details:

Model Name	YG12F
Applicable PCB	L50×W50mm - L510×W460mm
Mounting Accuracy	Absolute accuracy (μ + 3σ), ±0.05mm/chip
Mounting Capability	20,000CPH (Optimum conditions established by Yamaha Motor)
Component supply	Tape reel, tray package
No. of component types	Tape reel: 48 types (standard), 107 types (option) (Max. / 8mm tape reel conversion) Tray feeding: 15 types Max. / JEDEC tray conversion)
Applicable component size	0402 - 45mm max. (32 - 45mm conditional) including ball type electrode components
Mounting component height	15mm or less
Power Supply	3-phase AC 200/208/220/240/380/400/416 V ±10%
Air Supply Source	0.55MPa

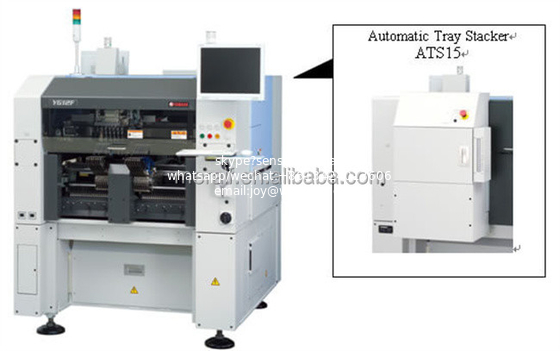

External Dimensions	L1,254×W1,440×H1,445mm (unit only, excluding projections) L1,254×W1,755×H1,445mm (with ATS15, excluding projections)
Weight	Approx. 1,250kg (main unit only) Approx. 1,370kg (with ATS15)

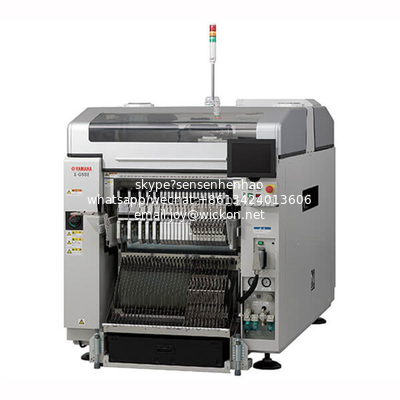

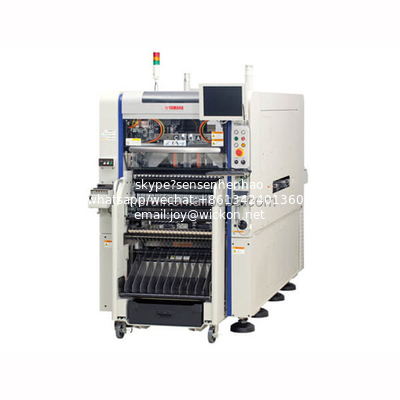

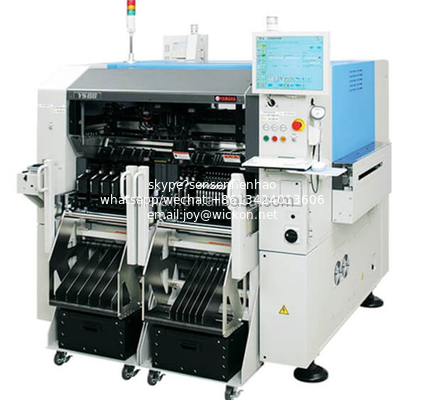

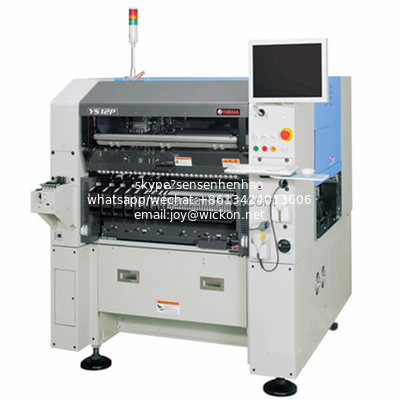

YG12F pick and place machine picture show

YG12F pick and place machine Yamaha Chip Mounter SMT PCB assembly line 0

YG12F pick and place machine Yamaha Chip Mounter SMT PCB assembly line 1

YG12F pick and place machine Yamaha Chip Mounter SMT PCB assembly line 3
