Hanwha SM320 Flexible mounter pick and place machine SAMSUNG SM320 SMT used machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Samsung SMT SM320 is a universal Mounter, can produce small pieces of CHIP materials,
but also can produce QFP material, suitable for small-scale production of independent products,
but also can be used in high-life turret Mounter Line for multi-functional chip processing.
Equipment, small size, light weight, does not account for the place.
Popular SM320. Highly Flexible, user friendly machine and highly reliable. Full vision with 6
placement heads, each with individual illumination allowing 6 totally different components to
be aligned on the fly. Upward looking camera allowing placement of components down to 0.4mm Lead pitch.
Hanwha SM320 Flexible mounter Specification:
Chip theoretical speed :18500CPH
Mounting range 0402mm Chip ~ 55mm IC
Placement accuracy plus or minus 0.03mm
PCB size 510 * 460-460 * 400mm
Equipment size 50 x 40 mm ~ 460 x 400mm
Component identification method
FLYING VISION + STAGE VISION
Mounting efficiency
Flight camera recognition system
CHIP 1608 18500 CPH (IPC9850)
SOP 15000 CPH (IPC9850)
QFP 5500 CPH (IPC9850)
Fixed camera vision system
1.4 SEC / QFP208 (TRAY SUPPLY STANDARD)
Components can be mounted range
FLYING VISION:1005 ~ 22mmIC (Option: 0603 ~ 12mmIC / 0402 ~ 7mmIC)
Mounting size:Standard stage vision (FOV 35) ~ 32mmIC
(Pitch 0.4mmQFP / 0.75mmBGA / ~ 55mm (MFOV))
Standard stage vision (FOV 45) ~ 42mmIC (Pitch 0.5mmQFP / 1.0mmBGA / ~ 55mm (MFOV))
Standard stage vision (FOV 20)~ 17mmIC (Pitch 0.3mmQFP / 0.5mmBGA)
Min.lead pitch (QFP) FOV10
0.3mm (QFP) /0.65mm (BGA)
Min.Ball pitch (BGA)
FOV15
0.5mm (QFP) /0.75mm (BGA)
FOV25
0.5mm (QFP) /0.75mm (BGA)
Max.Height
H12mm (Flying camera standard)
H15mm (Flying camera standard)
PCB board size
smallest size
50 (L) * 40 (W)
biggest size
460 (L) * 400 (W) / Option: 510 * 460, 640 * 510
PCB board thickness
0.38mm-4.2mm
Install feeder number
120ea / 112ea (docking cart)
Pressure and power consumption
power supply
AC220 / 220 / 240V (50 / 60HZ, 3 PHASE) (Option: 340/380 / 415V)
Air pressure
5kg / m2, 260 NI / MIN
Machine weight
1800KG
Machine size
1650 L * 1680 D * 1530 H
Sucessful Experience:
Meraif's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

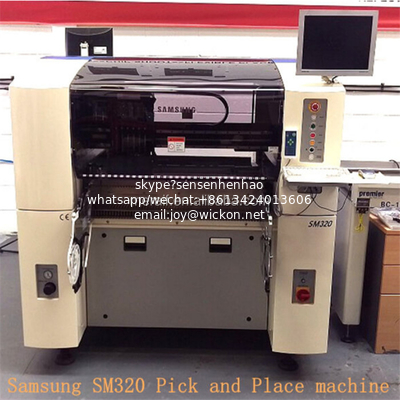

Hanwha SM320 Flexible mounter picture show
