Nstart-600 High-Efficiency Cream Solder Paste Mixer in SMT Production Line with Strong Applicability

Nstart-600 High-Efficiency Cream Solder Paste Mixer in SMT Production Line with Strong Applicability

whatsapp:+8613424013606,skype:sensenhenhao

Solder Paste Mixer Specifications:

Working voltage: 220 v AC( 50 hz) 60 w

A rotational speed: 1400 RPM; Secondary rotation: 400 RPM

Ability to work: 500 g * 2 cans

Can accept solder paste pot M tank diameter Φ 60-67 standard Φ

S tank diameter: Φ 53 - Φ 60 (option, please contact the supplier)

L tank diameter :Φ 67 - Φ 74

Every time adjust time setting :0.1 ~ 9.9 minutes, 0.1 minutes;

10 ~ 30 minutes, adjust 1.0 minutes at a time.

Display and warning LED digital display, warning lights flashing and a buzzer

The machine size 410 * 410 * 490 mm (D * W * H)

Model NSTAR - 600

The net weight: 45 kg

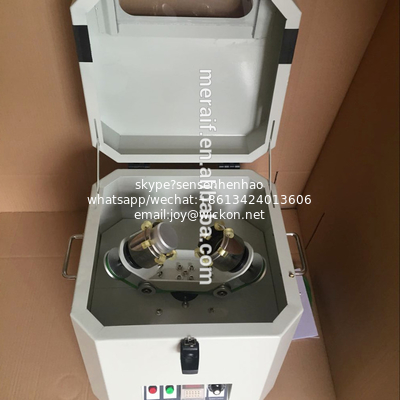

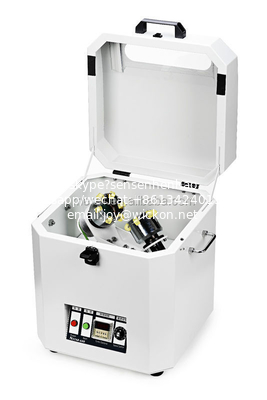

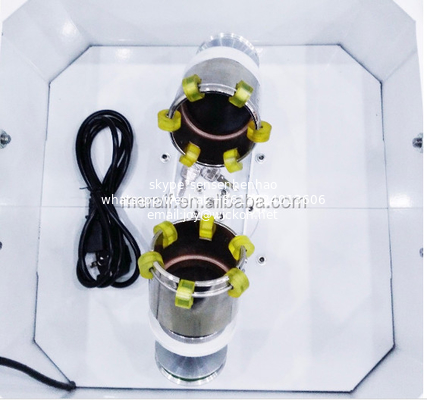

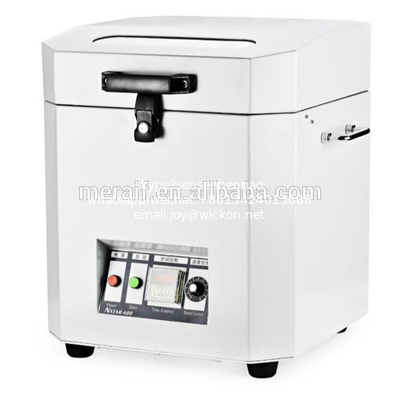

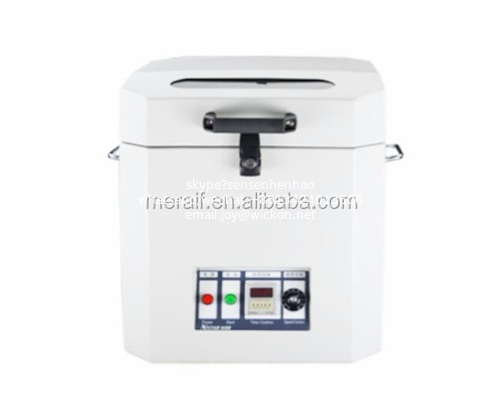

Solder Paste Mixer picture show:

  Contact Supplier

NSTAR-600 solder paste mixer The revolution of the centrifugal force generated by automatic paste mixer,the force produced by the rotation of the rotating shaft and the angle of 45 degrees,The tank is located in the upper end of the paste continuous downward movement,Located at the bottom of the pipe to the tank above the paste around the movement, the formation of a tornado funnel type stirring action, make a smooth paste mixing and softening, deaeration reach the proper viscosity after mixing paste has good wettability, diffusion uniformity, excellent printing effect, to achieve the best performance of reflow soldering when.Its characteristics are as follows:

A, Mixing does not require prior paste retreat of ice.

B, Special control circuit, mixing time and speed can be adjusted, easy to operate.

C, Paste 45 degrees rotation, along the axis direction, not attached to the tank cover paste.

D Smooth running, low noise, with the natural temperature in the mixing process, the effect of removing bubbles.

E, Paste pot without opening the lid, convenient, safe, suitable for various packing paste pot clamp.

F, Without water, does not destroy the shape of tin.

G, Power single 220V, with a safety device, to ensure personal safety
