| Type: | Centrifugal Fan | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Factory |
|---|---|---|---|
| Electric Current Type: | Static Eliminator Fan | Blade Material: | Antistatic Ionizer ESD |
| Mounting: | Eliminator Fan Antistatic Ionizer | Voltage: | 220V/110V |
| Warranty: | Unavailable | After-sales Service Provided: | No After-sales Service |
| Product: | Eliminator Fan Antistatic Ionizer | Size:: | 1100(L)x170(W)x125(H) Mm |
| Weight:: | 10kg | Air Coverage:: | 40cm X 120cm |
| Pressure:: | Medium Pressure | Application:: | Air Blower |
| Voltage:: | 220V/110v | Packin Size: | 120X20X5 Cm |
| Packing Weight: | 13kg | Lead Time: | 5-10days |
| Port: | Shenzhen |
skype:sensenhenhao,whatsapp/wechat:+8613424013606
Eliminator Fan Antistatic Ionizer Specification:
| Model | SL-003 |
| Current Consumption | 0.9A/0.45A |
| Air Volume | 120-330CFM |
| Size | 1100(L)x170(W)x125(H) mm |
| Air Coverage | 40cm x 120cm |
| Weight | 6.6kg |
Eliminator Fan Antistatic Ionizer Features:
1) Extensive air coverage;
2) Air flow adjustable;
3) With lamp;
4) Overhead installation;
5) Three air output.
Eliminator Fan Antistatic Ionizer Static Elimination Effect
| Testing Conditions | Testing Voltage: -1000V—100V, -1000V — -100V | |
| Temperature: 22°c±5°c | RH: ≤60% | |
| Distance: 300mm | ||
| Decay Time | Positive | 1.1s |
| Negative | 1.2s | |
| Offset Voltage | -10V — +10V | |
Remarks:
1) Distance measured in mm, decay time measured in second;
2) Test data available by using ME268A charged plate analyzer;
3) Test figures are subject to the variation of the atmospheric conditions.

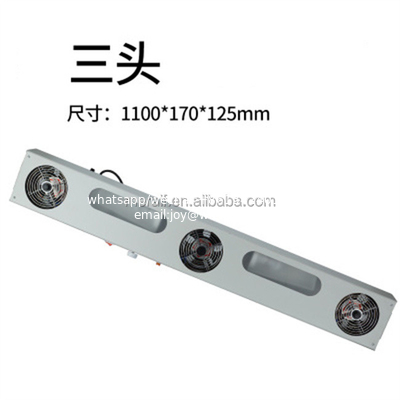

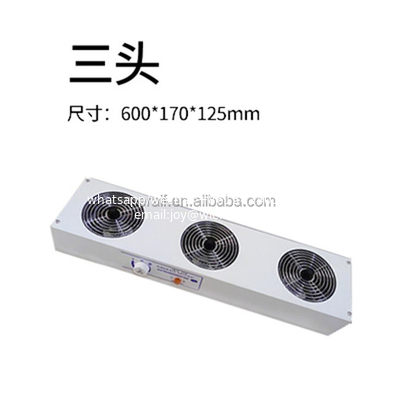

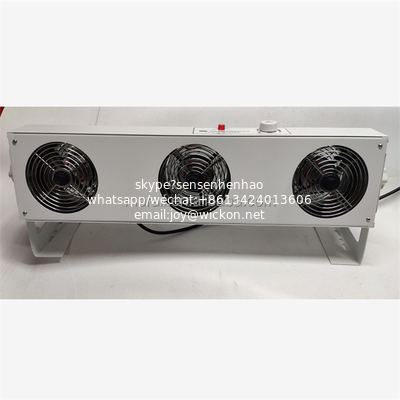

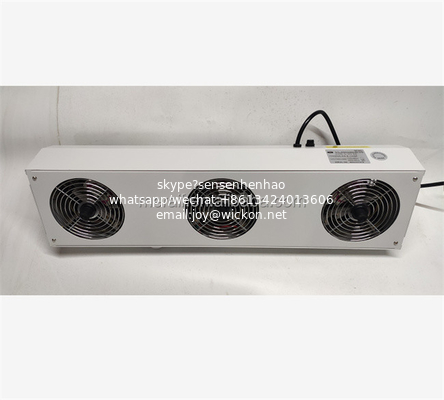

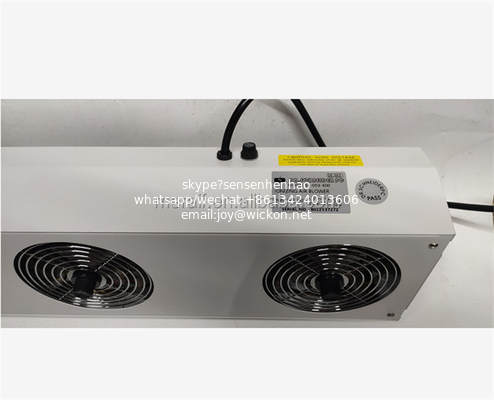

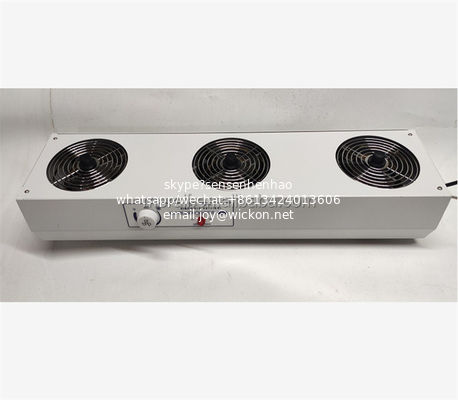

Eliminator Fan Antistatic Ionizer picture show :
