Product Details:
Payment & Shipping Terms:
|
| Dimension (L X W X H): | Hanging Basket Anti Static | Color: | Black |
|---|---|---|---|
| Usage: | Industrial | Structure: | Roll Container |
| Material: | Stainless Steel | Wheel: | ESD Magazine Rack For PCB |
| Item: | Hanging Basket Anti Static | Size: | 535*530*570mm |
| Type: | Push-Back Pallet Rack | Fuction: | Antistatic |
| Delivery Time: | 3-5 Days | Package: | Carton |
| MOQ: | 1pcs | Whastapp: | +8613424013606 |
| Skype: | Sensenhenhao | Wechat: | JoyLY0322 |
| Port: | Shenzhen |
esd smt reel storage cart hanging basket anti static PCB storage trolley antistatic workshop trolley online
whatsapp:+8613424013606,skype :sensenhenhao, wechat:JoyLY0322
| 1. External dimensions: L950 * W600 * H1700mm ± 10mm |
| 2. Basket Size: L410 * W280 * H160mm ± 3mm |
| 3. hanging Basket inner angle: 90 degrees |
| 4. hanging Basket production method: stainless steel edging |
| 5.Number of hanging Basket: 24pcs |
| 6.Number of the PCB plate can be stored in Each hanging basket: 38PCS |
| 7. hanging Basket guide groove: Vertically insert |
| A. groove depth: 3mm |
| B. Width: 3mm |
| C. slot length: 220mm |
| D. groove height: 140mm |
| E: grid spacing: 10mm |
| 8. surface resistance: 104Ω---109Ω |
| 9. Main Material: 201 stainless steel pipe and PP conductive plate |
| 10. hanging Basket bearing weight: 15KG |
| 11. Casters Dimensions and materials: 3 inches |
| 12. Antistatic measures: conductive material,and conductive chain |
| 13. Tube Thickness: 0.9mm ± 8C |
| 14. Affordable temperature: 60 ℃ |
ESD Magazine Rack For PCB Price list

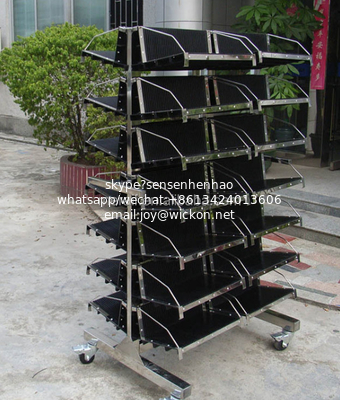

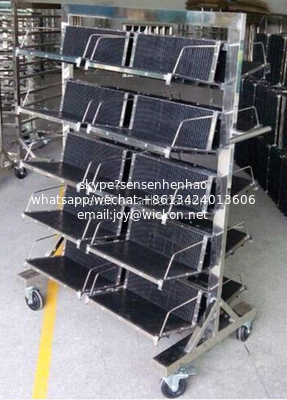

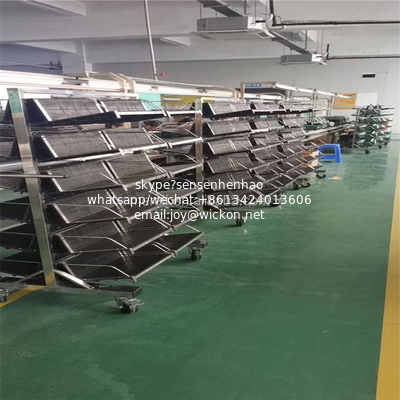

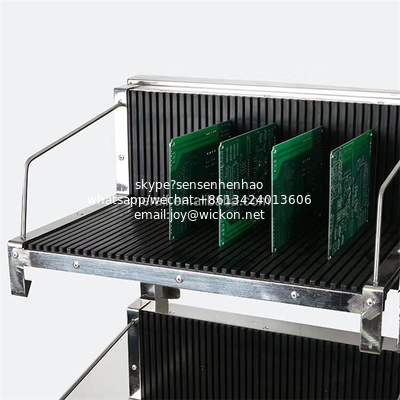

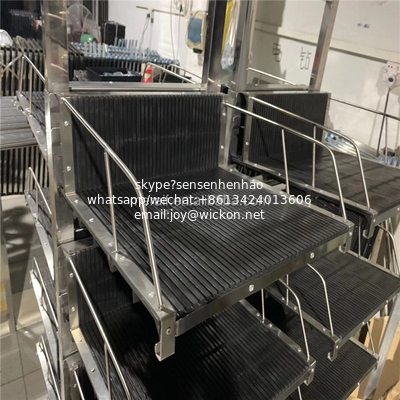

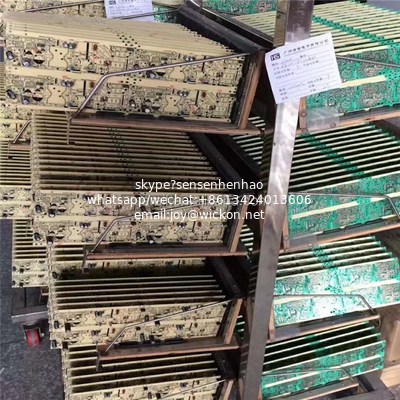

ESD PCB Storage trolley picture show:
The other type please feel free contatc Joy Liang
Contact Person: Miss. Joy Liang
Tel: +8618824670322
