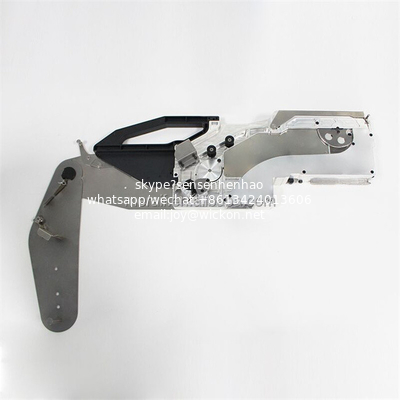

OEM SMT machine parts samsung SME electric feeder SMT Samsung SME Feeder 32mm
We are smt solution provider more than 16yeras.
All smt machine line and parts, PCBA cleaner machine line we can support you.
OEM electronic feeder for Hanwha SM series pick and place machine
SME Feeder 32mm parameters
Applicable models: all models of SM series
Alternative Feeder: SM SME Feeder
Main body material: aluminum alloy
Positioning method: double-pin guide rail positioning, connecting rod locking
Electrical interface: 5 PIN contact interface
Current: 0.5A | 2.5A MAX.
Communication method: Pulse
Drive mode: electric drive
Feeding speed: 68ms/pcs 4mm pitch
Feeding accuracy: X axis ±0.05mm, Y axis ±0.05mm
Feeding speed: 80000CPH
Lamination recycling: rear storage bin or inclined-pull winding mechanism
Applicable package: 8/12/16/24/32/44/56MM standard SMT package
Applicable materials: all materials that can be packaged in standard SMT
Refueling method: overall refueling, tape refueling
Working temperature: temperature -20~65℃
Working humidity: humidity 20~90%RH, no condensation
Storage temperature: temperature -40~85℃
Storage humidity: humidity 10~95%
Drop crash test: body 0.5kg/cm2
Aging Test: 1000 hours of continuous work without abnormality
Operation Record: Complete and consistent
Service life: >=20K hrs.MIL-HDBK-217F(25℃)
SME Feeder 32mm Remarks:
Pitch Display:Indicates the feeding distance
Pitch Change:Click Toggle Spacing.
Y Dirction Tuning:In fine-tuning mode, the keys advance slowly.
Direction Setup:Press and hold for 3 seconds and the indicator turns yellow to enter the fine-tuning mode. Click Save Current Position when fine-tuning is complete between.
Working Indicator:Green light indicates normal operation; yellow light indicates setting status; red light indicates error message.
Forward Key:Click the forward button, the material belt will advance one step, long press to advance continuously.
Reset Key:When the FEEDER light is red, click to restore to normal state.
Reverset Key:Click the back button, the material strip will go back one step, long press to go back continuously.
Take Rell Key:Press and hold the tape motor to work, and press the tape button to automatically retract into the lamination feed bin when feeding.
The stepper motor replaces the cylinder drive of the traditional feeder, and the precision copper gear replaces the mechanical link drive. By taking the electrical contact pin and connecting the 24V safety power supply, the shielding sensor converts the mechanical signal of the placement machine into an electrical signal and controls the feeder to work.
Upgrade advantage: Wide range of electronic material models. 8mm is compatible with two packaging methods of paper tape, and 1mm/2mm/4mm steps can be switched with one key. One AREED 8mm electric feeder can be used instead of the original three 8mm feeders; one AREED12mm can be used instead of 12mm and 16mm feeders.
Precision advantage: The drive motor runs with a smaller amplitude than the cylinder, which reduces the material deviation caused by vibration. High-precision feeding gears are matched with high-precision motors to ensure accurate feeding every time. The self-developed FEEDER calibrator can capture the X/Y coordinate value of each feeding, and calculate the CA\CP and CPK values to judge the consistency of the feeding accuracy of each FEEDER.
Speed advantage: Feeding speed: The self-developed control board software algorithm is more scientific and reasonable. The stepping motor is equipped with an acceleration gear, and the feeding speed of the FEEDER exceeds the SM feeder's reclaiming limit. Line change speed: stripping tape directly above, with self-contained film storage room; batch line change without disassembling the feeder, automatic warehouse opening reminder when the material is full, truly realizes the function of non-stop material change, and the line change efficiency can be increased by more than three times.

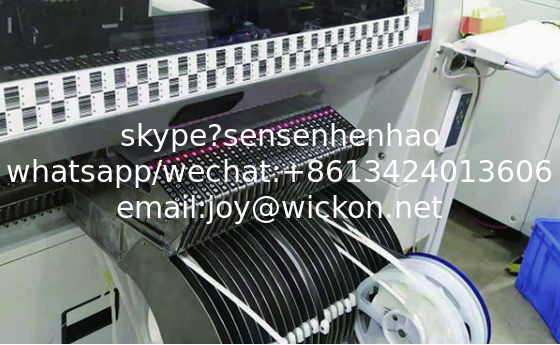

Compatibility advantage: Applicable to all HANWHA SM series placement machine FEEDER platforms on the market. No need to change or destroy the original line, simple, safe and effective. It does not interfere with the original feeder station, and can be used alternately at the same time.
Mount tape onto holder, ensure cover layer tape passes through component feeding guide.
Open safety lock,open tape guide.
Peel off cover layer tape and ensure carrier sits onto pin in sprocket.
Press and Open safety lock, colse tape guide and ensure safety lock.
Pass the cover layer tape over pulley and betwwen take up gear tooth. Ensure tape is securely latch onto gear,close cover.
Manually wind take up gear to secure and tighten cover layer tape , pass excess tape into storage box .
