Product Details:
Payment & Shipping Terms:
|
| Condition: | Used | Weight (KG): | 1000 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | YG200 Chip Mounter |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Model Number:: | YG200 Machine | Lead Time: | In Stock |
| Through Put: | (Optimum)45,000CPH(0.08sec/CHIP Equivalent) | Applicable PCB:: | L330xW250 Mm To L50xW50 Mm |
| Applicable Components:: | 0402 (Metric Base To 14xmm Components | Number Of Component Types:: | 80 Types Max, 8 Mm Tape Reel Conversion) |
| Mounting Accuracy:: | Yamaha''s Standard Components | Port: | Shenzhen |
Original used YAMAHA YG200 pick and place machine YG200 chip mounter machine for smt assembly line
whatsapp:+8613424013606,skype :sensenhenhao
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
We are smt solution provider more then 16 years for electronic fatcories.
Used Yamaha YG200 surface mounter for PCB led assembly line
YG200 chip mounter Specification:
Second-hand Yamaha YG200 placement machine is generally about the 2005-2009 year equipment, the frame was cast once to ensure durability and stability, windows operating system, 4 heads 24nozzles placement, 6 nozzles on each head, 2 pieces can be attached at one time PCB,
dual-axis and double-screw drive ensure high-speed, long-term, high-load and high-precision production. Five kinds of material racks can correspond to all the tape components, realizing the intelligence of the tape rack.
The theoretical 45,000 points per hour. The actual production speed is about 30,000 points per hour. It is a placement machine with medium machine size and high-speed machine speed.
| L330×W250mm to L50×W50mm |
| Through put (Optimum)45,000CPH(0.08sec/CHIP Equivalent) |
| Mounting accuracy (Yamaha’s standard components) |
| Absolute accuracy (μ+3σ):±0.05mm /CHIP |
| Repeatability (3σ):±0.03mm/CHIP |
| Applicable components0402(Metric base)to 14mm |
components Height of components which can be mounted: 6.5mm or less A lowable height on PCB surface before transport 6.5mm or less Number of component types80types(Max, 8mm tape reel conversion)
Power supply3-Phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz
Air supply source0.55MPa or more, in clean, dry states
External dimensionL1,950×W1,408(End of cover)×H1,450mm(cover top)L1,950×W1,608(End of guide for feeder carriage)×H1,450mm(cover top)
Weight Approx 2,080kg

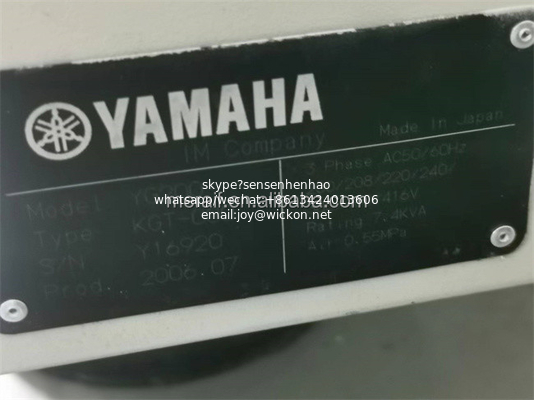

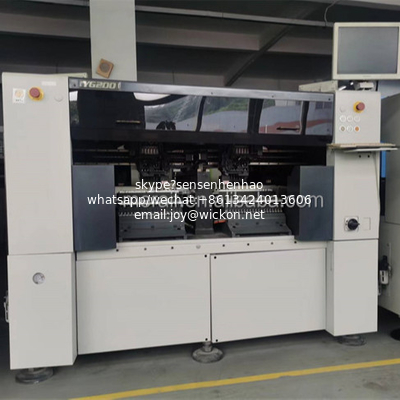

YG200 chip mounter picture show
