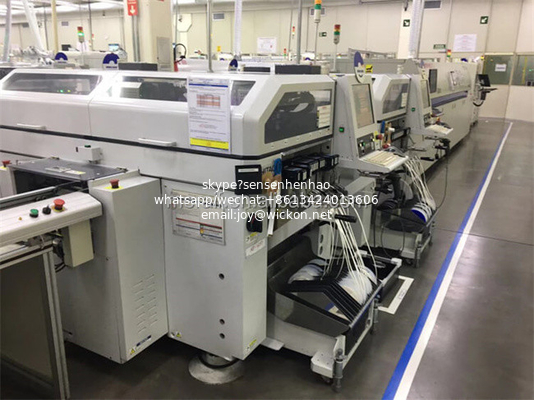

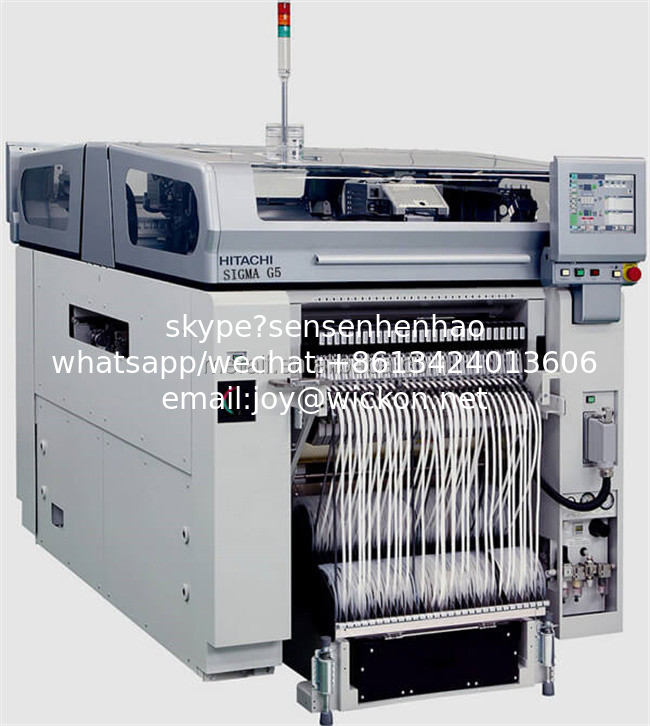

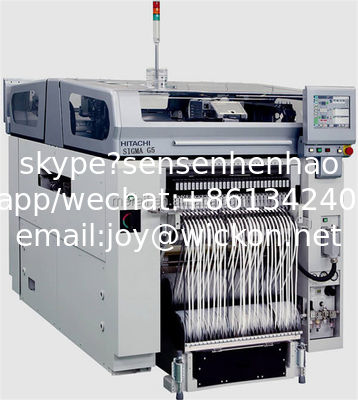

Sigma G5 Flexible Modular SMT Mounter pick and place machine for Hitachi

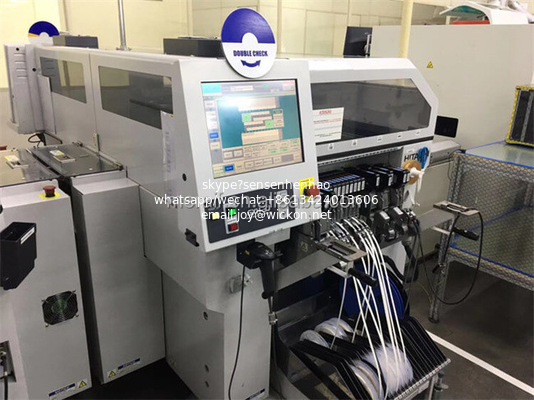

Hitachi SIGMA Compact Premium modular mounter achieves high productivity and high quality with functions such as direct drive head, overdrive motion detection apparatus, and linear motor-driven XY beams. Hitachi SIGMA-G5 Pick and Place Machine allows you to quickly change the head units and tray units so that you can flexibly handle changes of component types. This SMT Chip mounter offers significant improvement in operations and maintenance.

Hitachi Mounter SIGMA G5 Features:

Operating system and display Windows XP; color LCD touch panel display series SIGMA G5 module placement machine Hitachi series direct-drive module Mounter equipped with 15 nozzles direct-drive head, linear motor drive XY axis, do not stop a recognition, Y-axis optimization adjustment to achieve a high yield of 65000CPH.

Concept:

Overdrive motion

Ultimate access

Super wide range DDH V5

Smart operation

Voluntary line operation

Wide-open &Easy access

Quick exchange

Auto changeover PP type

LISA

Feeder hot-swap

Chip theory speed 84500chip

Placement range 1005 (0402) -32mmIC

Placement accuracy plus or minus 0.03mm

Power 1.80kWh

Hitachi SIGMA G5 parameters

Mounting head structure of high-speed head 2 placement head/module, 15 nozzle/placement head

Universal head 2 placement head/module, 3 nozzle/placement head

High-speed head 70,000 cph (1 module)

Universal head 14,500cph (1 module)

High precision head 40um with 30um head

Applicable components Length and width High-speed head 0.4 x 0.2mm ~ 44 x 44mm

Universal head 1.0 x 0.5 ~ 55 x 55mm 150 x 26mm

The thickness of high-speed head 12.7mm universal head 25.4mm

Power AC3 phase 200V ± 20V 50 / 60Hz

Apparent power is about 7.4 kVA

Power consumption per hour is about 1.80kWh

Ambient temperature 20 ± 10

Ambient humidity 30 ~ 80%

Air pressure 0.45 ~ 0.69Mpa (4.6 ~ 7Kgf / cm2)

Vacuum pressure -93kPa

Floor load-bearing 1,009kg
