YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine

China YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine supplier
YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine supplier YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine supplier YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine supplier YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine supplier YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine supplier YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine supplier

Large Image :  YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine

Product Details:

Place of Origin: Japan
Brand Name: used smt machine
Model Number: Yamaha ys88 Pick and Place Machine

Payment & Shipping Terms:

Price: $60,000.00 - $1,000,000.00/pieces
Packaging Details: Yamaha ys88 Pick and Place Machine
Supply Ability: 1000000 Piece/Pieces per Month Yamaha ys88 Pick and Place Machine
Contact Now
Detailed Product Description
Condition: New Weight (KG): 1000
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Product Name: Yamaha Ys88 Pick And Place Machine
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
Usage:: SMD LED SMT Application:: SMT Assembly Production Line
Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days Port: Shenzhen

YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

 Yamaha ys88 Pick and Place Machine details:

Intelligent electrical feeders
Z-Servo controlled placement heads for accurate stress-free component mounting
Automatic board width and thickness adjustment for fast changeover
Automatic nozzle cleaning station
Automatic temperature feedback compensates for temperature variations
Fiducial recovery function that eliminates the need to remove and clean the PCB
Feeder indicators that simplify setup and reduce feeder setup
Double board support system that decreases board transfer time
Force control
Tape cutting

Yamaha ys88 Pick and Place Machine details:

Model YS88(Model : KJH-000)
Applicable PCB L510xW440mm to L50xW50mm (Note 1)(Note 2)
Through-put (Optimum) 8,400CPH(0.43sec/CHIP Equivalent)
Mounting accuracy (Yamaha's standard components) Absolute accuracy (μ+3σ):+/-0.05mm /CHIP, +/-0.03mm /QFP
Repeatability(3σ) +/-0.03mm /CHIP, +/-0.02mm /QFP
Applicable components 0402(Metric base)to 55mm components, SOP/SOJ, QFP connector, PLCC,CSP/BGA, Long connector(W45xL100 mm or less)(Note 3)(Note 4)
Odd-shaped components(such as special connectors)which requires pressing force control mounting(10 to 30N)
Height of components which can be mounted : 25.5mm or less(Note 5)
Allowable height on PCB surface before transport : 6.5mm or less
Number of component types 90types(Max,8mm tape reel conversion)(Note 1)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry states
External dimension(Note 6) L1,665xW1,562(End of cover)xH1,445mm(cover top)L1,665xW1,615(End of guide for feeder carriage)xH1,445mm(cover top)
Weight Approx. 1,650kg(Main unit only)



(Note 1)It is varied by the combination layout together with sATS / dYTF etc.
(Note 2)For information on "2 stages push-up spec.", please consult us separately.
(Note 3)A preliminary arrangement is necessary when a side-view camera is installed.
(Note 4)When handling long connectors and large sized components, about the eccentric offset values and the rotation angle, please consult us separately.
(Note 5)22.5mm or less when the side-view camera is installed.
(Note 6)This dimension does not include the projection.

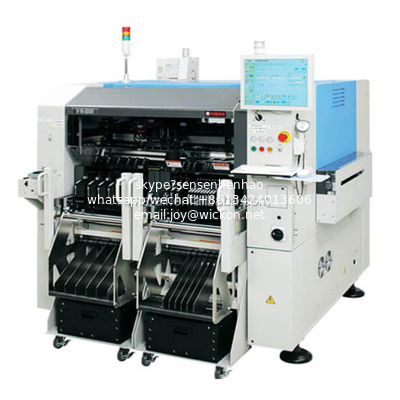

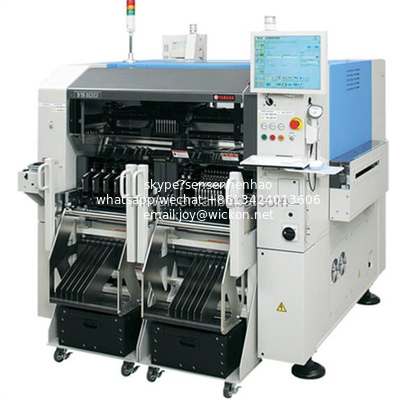

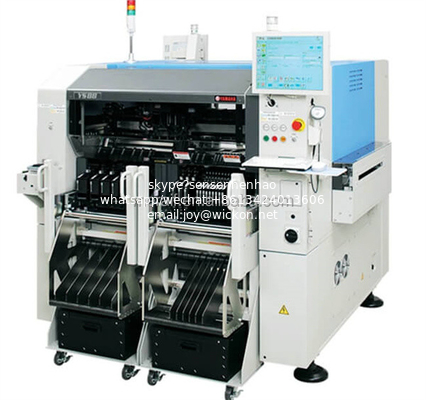

 Yamaha ys88 Pick and Place Machine picture show

YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place MachineYS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine

YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine

YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place MachineYS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place MachineYS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place MachineYS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place MachineYS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine

YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place MachineYS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place MachineYS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine

YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine

YS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place MachineYS88 multi-function deformed module SMT machine Yamaha ys88 Pick and Place Machine
