DEK Stencil Printer Horizon 03iX SMT PCBA printer machine for smt machine line

Products

LCD glass sucher/vacuum suction pen

SMT solder paste mixer/smd counter

SMT NSK LUBE grease/grease gun

SMT Splice tape/smt splice tools

DEK Stencil Printer Horizon 03iX SMT PCBA printer machine for smt machine line

Price:	$60,000.00 - $1,000,000.00/pieces
Standard Packaging:	DEK Stencil Printer
Supply Capacity:	1000000 Piece/Pieces per Month DEK Stencil Printer

Detail Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

DEK Stencil Printer

Model Number

Horizon 03iX

Condition:

Weight (KG):

Showroom Location:

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Hot Product 2019

Warranty Of Core Components:

1 Year

Core Components:

Warranty:

1 Year

Product Name:

DEK Stencil Printer

Skype:

Sensenhenhao

Whatsapp/wechat:

+8613424013606

Model Number::

YSM20 SMDCHIPMOUNTER

Applicable Components::

Nts: 0402~5050

Usage::

SMD LED SMT

Application::

SMT Assembly Production Line

Film Materials::

Privacy Material

Power Supply::

AC220V 50Hz / AC110V

Lead Time:

7-30days

Port:

Shenzhen

Product Description

DEK Stencil Printer Horizon 03iX SMT PCBA printer machine for smt machine line

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

DEK Stencil Printer:

DEK Horizon 03iX
DEK is fully automatic SMT printer.
High-speed moving camera.
Advanced upper/lower vision system.

Device alignment accuracy	> 2cpk@ +/ -12.5 microns, 6 sigma
Process alignment accuracy	> 2cpk@ +/ -25 microns, 6 sigma
Core printing cycle time	12 seconds (up to 11 seconds with HTC)
Scraper pressure mechanical system	Software control, motor drive
ISCANTM equipment control	Operation control using CAN BUS network
interface	Color tablet touch screen, keyboard and trackball, DEK InstinctivTM V9 user interface
Screen orientation	Manually load using the mesh frame depth regulator
Maximum substrate handling size	510 mm (X) X 508.5 mm (Y)
Minimum substrate handling size	50 mm (X) X 40.5 mm (Y)
The thickness of the substrate	From 0.2 mm to 6 mm
Base board weight	1 kg
Rail type	Use a 3 mm round belt integral transmission system
The visual system	Cognex
Camera lighting	Software controlled programmable LED lighting

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

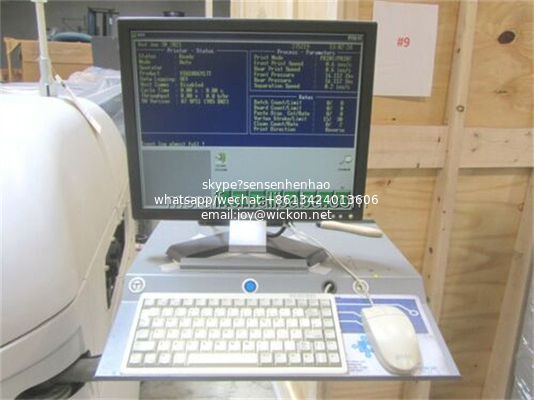

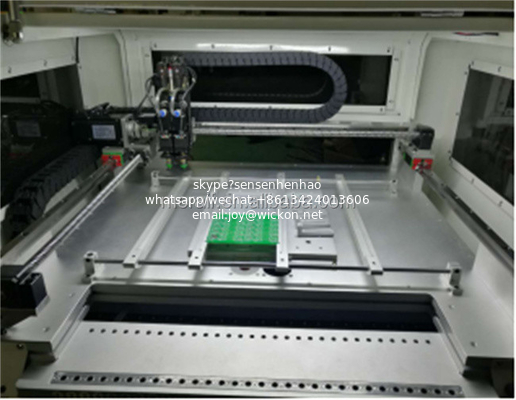

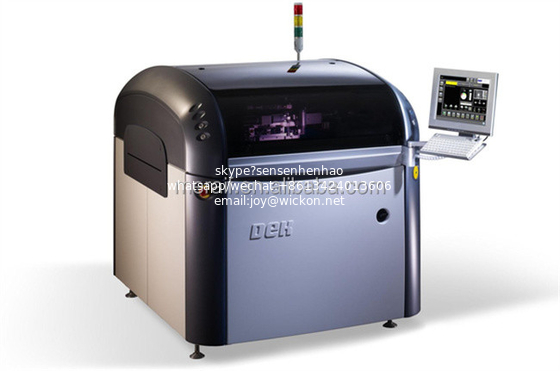

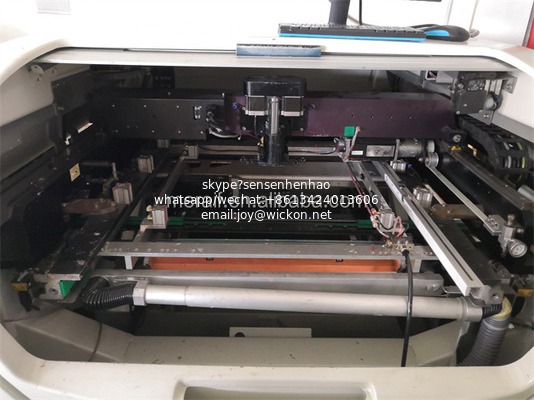

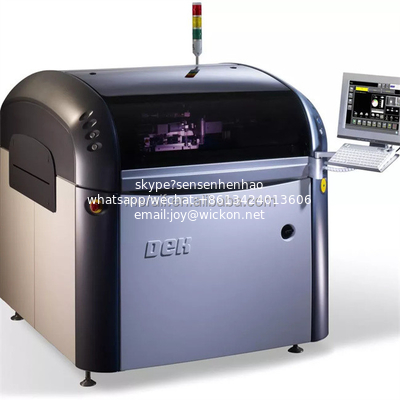

DEK Stencil Printer picture show

DEK Stencil Printer Horizon 03iX SMT PCBA printer machine for smt machine line 1

DEK Stencil Printer Horizon 03iX SMT PCBA printer machine for smt machine line 6

DEK Stencil Printer Horizon 03iX SMT PCBA printer machine for smt machine line 8

DEK Stencil Printer Horizon 03iX SMT PCBA printer machine for smt machine line 9
