PMCD4004 Valved Panel Mount PTF Coupling Insert 1/4 PTF in stock
whatsapp:+8613424013606,skype:sensenhenhao
PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.
PMCD4004 Coupling Insert Specifications:
Material: Acetal
Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Panel Mount
Tubing Size: .17" ID, 1/4" OD
Valve Option: Valved
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
Available in Bags of 25 units
PMCD4004 Coupling Insert SPECIFICATIONS
Product Weight & Dimensions
Product Weight:0.01g
Product Details:Water
Body Material:Acetal Copolymer
Inlet/Outlet Connection:1/4" FPT
Max Pressure (Psi):120
Max Temp (°F):180
Min Pressure (Psi):Vacuum
Min Temp (°F):-40
Mounting Options:Panel Mount
Nsf Version:No
Push-In Size:1/4" OD
Seal Material:Buna-N
Series:PMC
Size:1/4"
Spring:316 stainless steel
Valve Type:Valved
Color / Finish:white
Connection Type:male (FPT)
Type:Coupling Insert

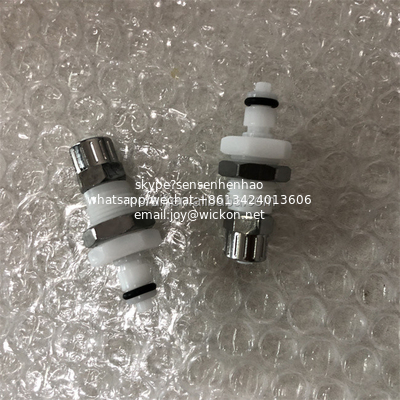

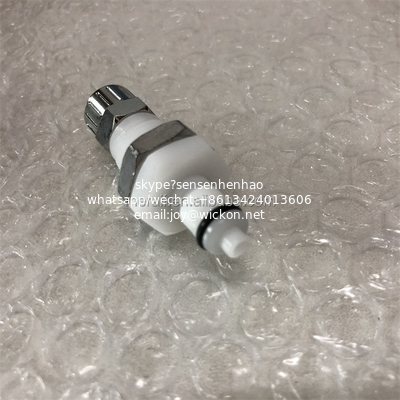

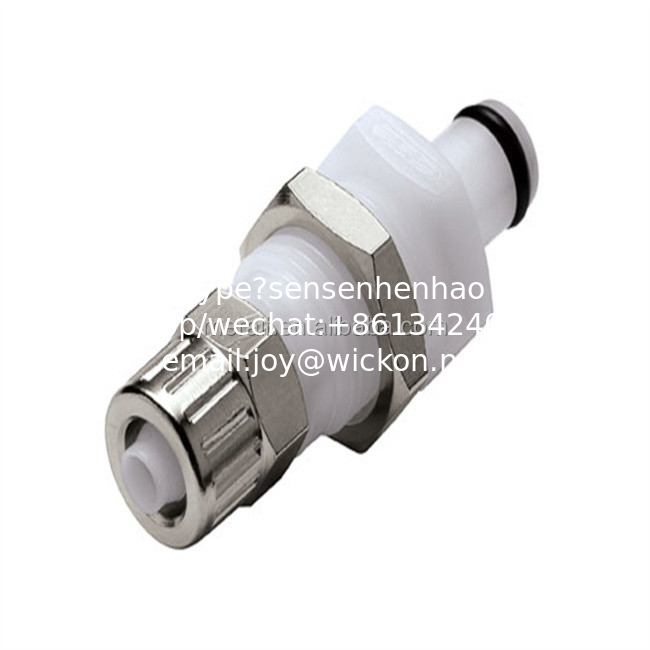

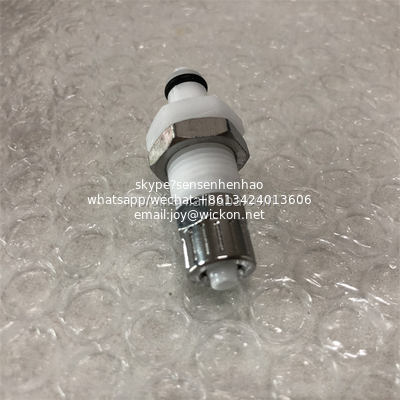

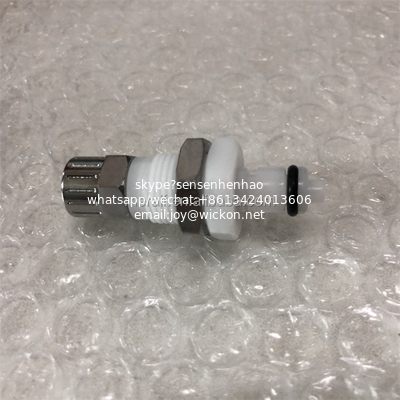

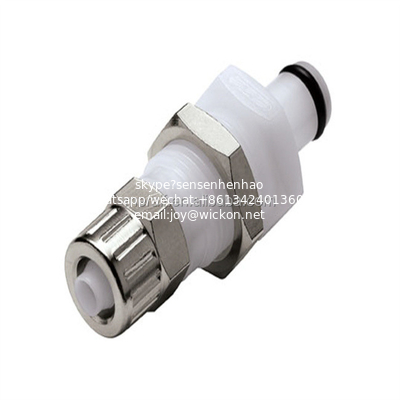

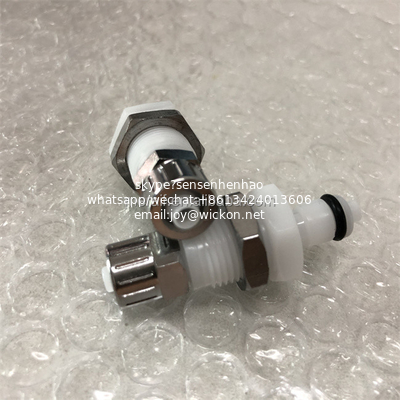

PMCD4004 Coupling Insert picture show:
