Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Weight (KG): | 1000 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Product Name: | Heller 1936 MKV Reflow Oven |
| Skype: | Sensenhenhao | Whatsapp/wechat: | +8613424013606 |
| Maximum PCB Width: | 18" (56 Cm) / 22" (56cm) | Conveyor Length On/off-Load: | 18" (46 Cm) |
| Heated Tunnel Length: | 70" (179 Cm) | Process Clearance Above Mesh Belt: | 2.3" (5.8 Cm) |
| Mesh Belt Pitch: | 0.5" (1.27 Cm) | Maximum Conveyor Speed: | 74"/Min (188 Cm/min.) |
| Accuracy Of Temperature Controller: | + .1°C | Port: | Shenzhen |
SMT Industries Heller reflow oven 1936 MK5 air soldering machine Heller 1936 MKV reflow oven for smt machine line
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.

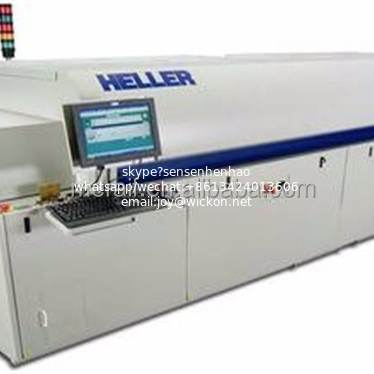

Heller reflow oven
The 1700 models support high mix / medium volume throughput... at speeds up to 24 inches (60 centimeters) per minute, while conserving valuable factory floor space. Rapid response times and precise temperature controls assure process uniformity, regardless of component density or board loading, with identical profile performance in either air or nitrogen.
Highest Yields and Tight Process Control
The most efficient heat transfer from extra high volume, high-velocity, heating modules, producing heater module response of less than one second to temperature changes of less than 0.1ºC, thereby maintaining profile integrity for heavy board loads.
Wide process window for "universal profiling" - allows many different boards to be run on a single temperature profile
Advanced 5 thermocouple PCB profiling and process parameter logging capability with the capacity to store up to 500 temperature recipes and 500 profile graphs

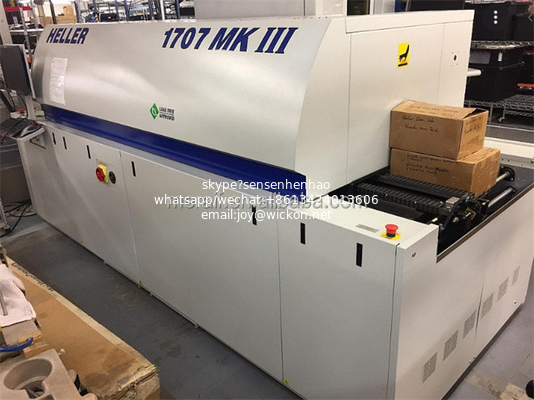

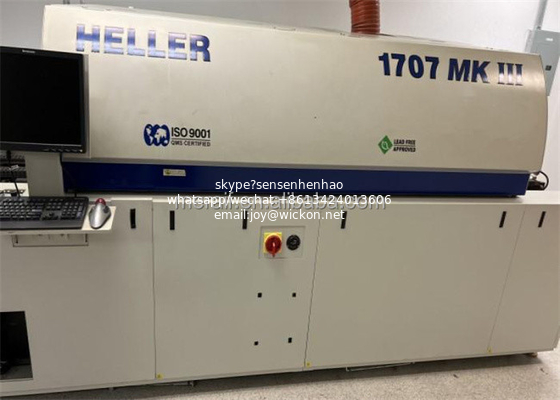

Heller 1707 MKIII
In addition to PID controllers used to monitor and adjust the oven temperatures, the 1707 MKIII has process control software powered by ECD (home of M.O.L.E. thermal profilers). Oven and Process Cpk are tracked, and product traceability is reported.
Both an edge hold conveyor and a mesh belt conveyor are part of the two-fold conveyor system in the 1707 MKIII. The edge hold can support a PCB assembly with as little as 3(mm) edge clearance, and the mesh belt does not require space between the PCB assemblies.
Accuracy of the temperature controller is plus or minus 0.1 degrees Celsius and cross-belt tolerance is within plus or minus 3.0 degrees Celsius. These tight temperature ranges are accomplished using Nichrome heater material and calcium silicate insulation.
A “blow thru” cooling module is used in the final cooling zone to provide cooling rates greater than 3 degrees Celsius per second on even the largest land grid array components.

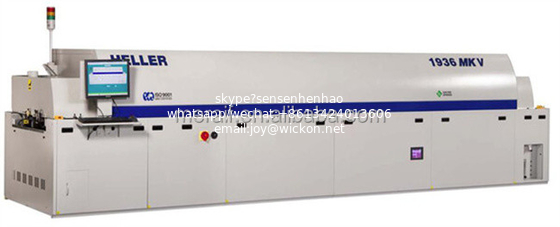

Heller 1936 MKV reflow oven picture show
